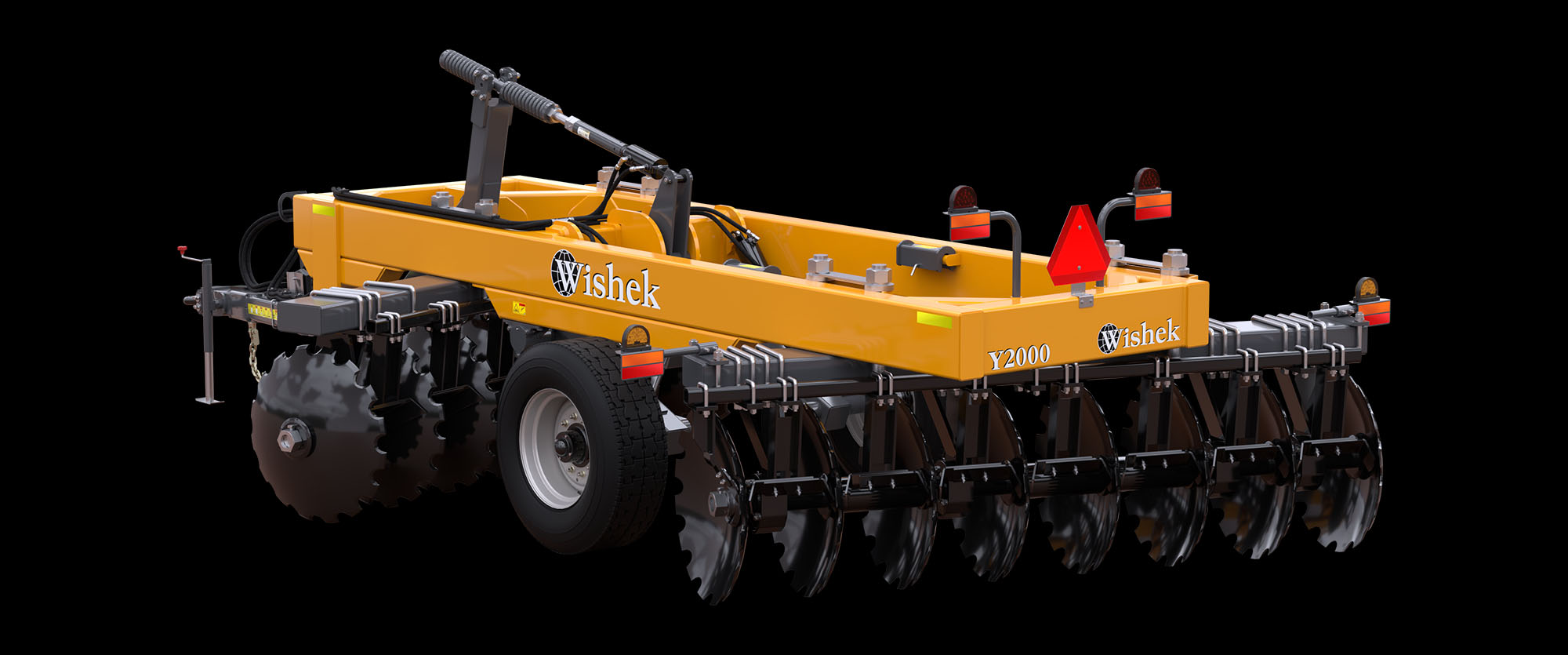

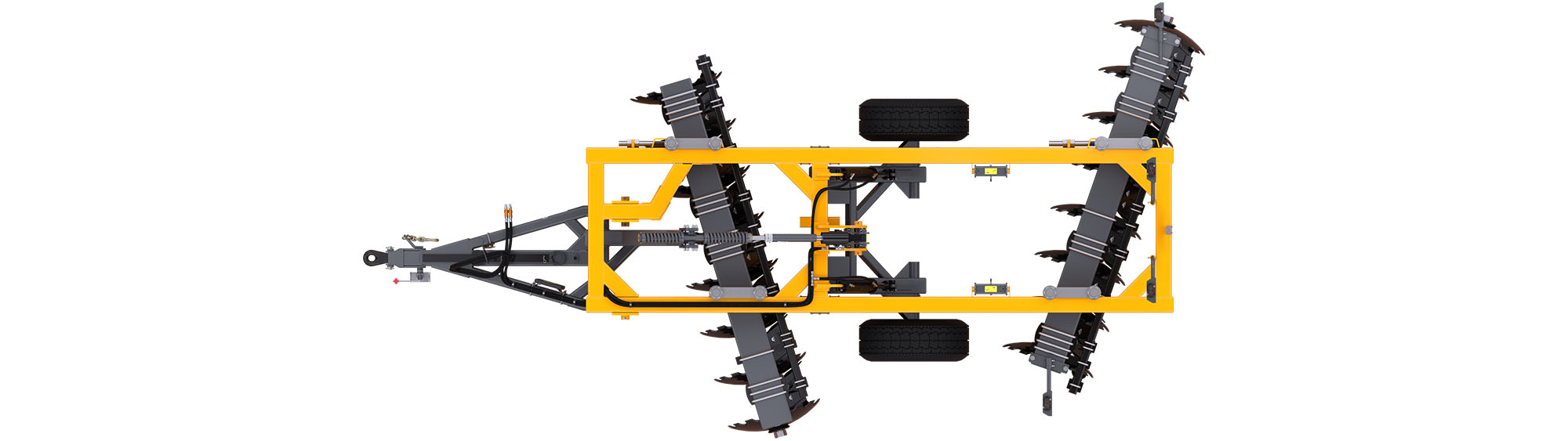

Wishek Y2000
11 ft
9 in
>295 hp
18 in
Construction disc for tough conditions
The massive frame of the Wishek Y2000 is engineered to withstand the toughest conditions on the construction site. As a offset disc, its industry-leading blade size and high bearing-to-blade ratio is designed for superior reliability, helping get the job done on time. Additionally, it can be positioned on a trailer fully assembled for easy transport to and from the worksite.
Superior ground penetration
The Wishek Y2000 is designed for superior ground penetration with its heavy tubular frame, ensuring durability and effective performance in tough soil conditions. Its large 36 in diameter notched blades, spaced 18 in apart, break up ground up to 9 in deep, enhancing efficiency and productivity.

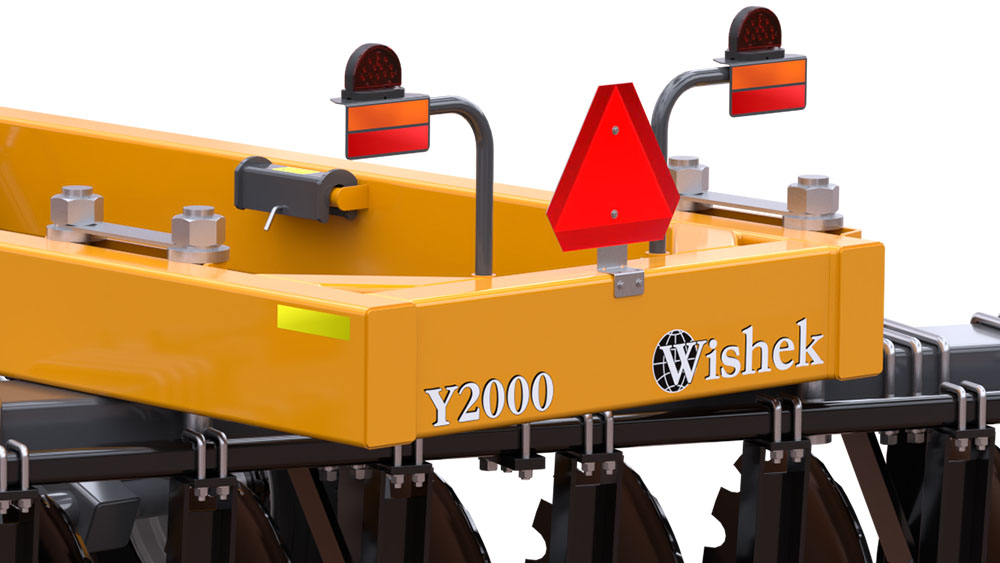

Heavy frame for durability and effective penetration
The Wishek Y2000 features a heavy tubular frame measuring 4 x 12 x 3/8 in. The welded frame ofers rugged durability and delivers the necessary weight to penetrate tough ground effectively. This ensures that the machine can handle even the most demanding soil conditions, making it an invaluable tool for any construction project.

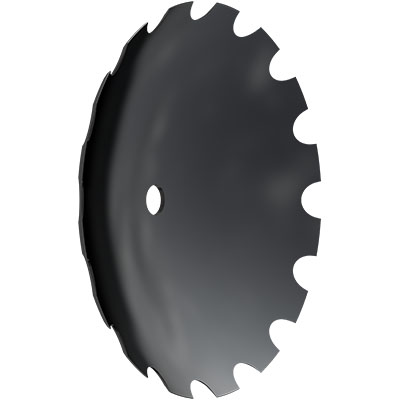

Large-diameter notched blades
The large 36 in diameter notched blades are ideal for breaking up ground up to 9 in deep. These large discs enhance the machine’s ability to tackle tough soil, improving overall efficiency and productivity on the construction site.
Reducing maintenance with effective cleaning features
The Wishek Y2000 is designed with specialized disc scrapers and bearing guards to keep the machine free of mud and debris. These features ensure smooth operation and reduce maintenance needs, maintaining the machine’s efficiency and reliability even in tough conditions.

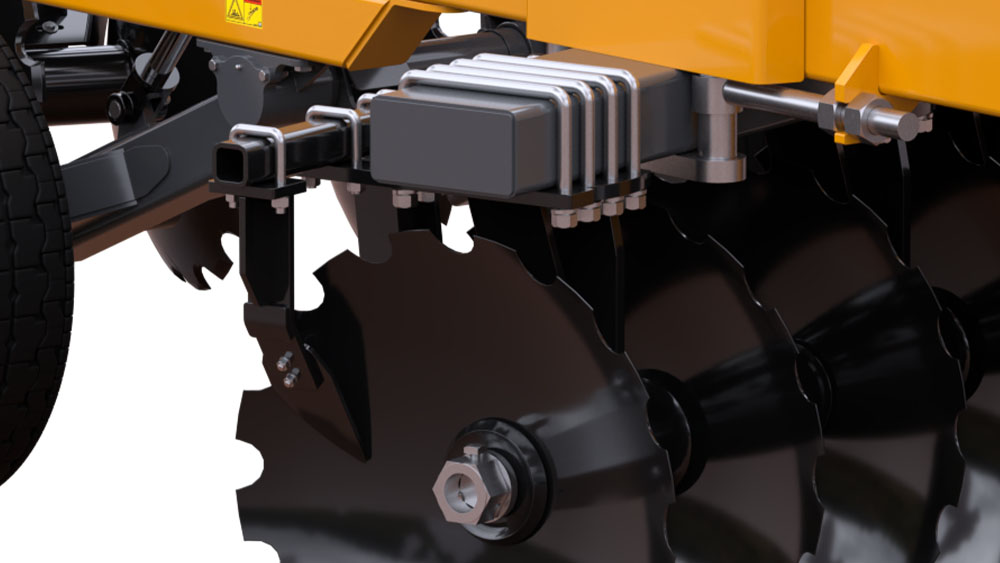

Disc scrapers for smooth operation
The Wishek Y2000 comes standard with specialized scrapers for the discs, bearings, and spools. These scrapers help optimize the performance of the disc by keeping the gangs free of mud build-up, ensuring smooth and consistent operation.

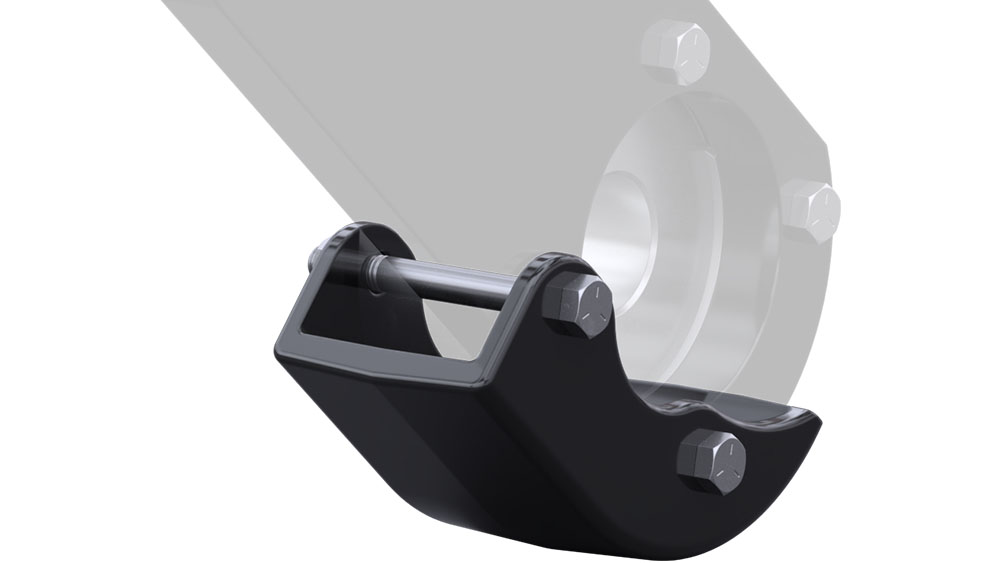

Bearing guards and washers for reduced maintenance
To maximize reliability, the disc bearings are equipped with guards and washers. These components help prevent dirt and other debris from entering the bearings, extending the lifespan of the machine and reducing maintenance needs.

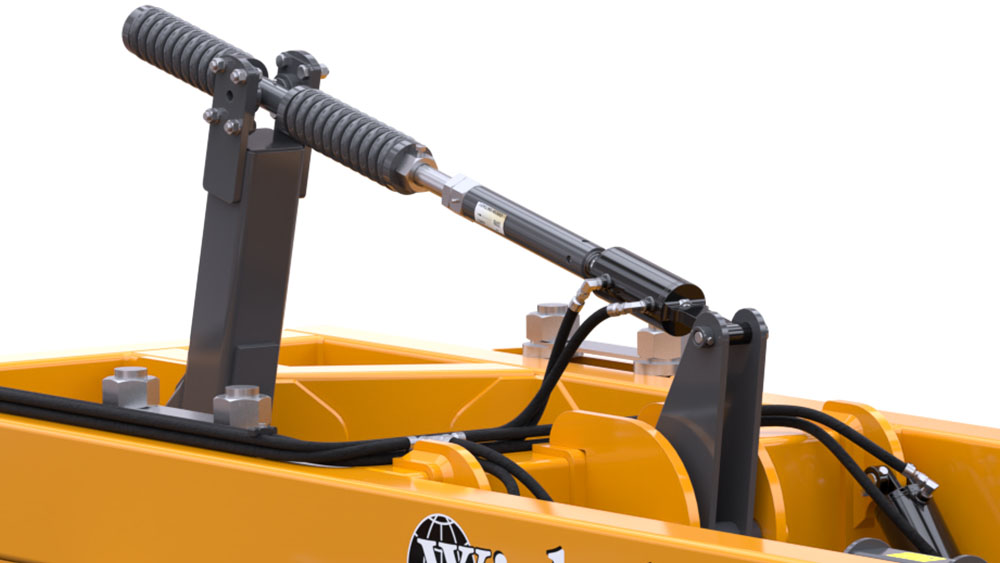

Manual or hydraulic levelling screws
The disc can be leveled front-to-back manually with leveling screws. For added convenience, a hydraulic option allows this task to be performed from the cab, enhancing ease of use and operational efficiency.
Rigid bearing gangs
The rigid bearing gangs on the Wishek Y2000 are easily replaceable and offer years of dependable service. This feature ensures that the machine remains a reliable asset on the construction site, even after extended use.

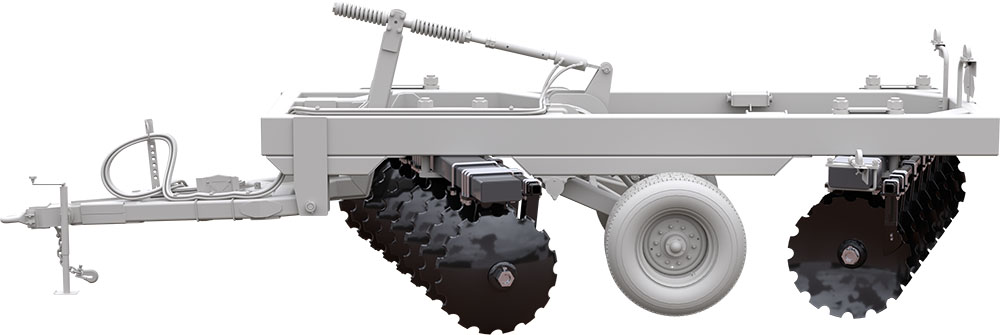

Concept
Zone 1 – Mixing
Wishek offer exceptionally large discs, available in 36 in. The concave discs are designed to mix soil and residue efficiently. The implement’s heavy frame helps penetrate hard ground and maintain consistent depth, even in the most challenging applications.

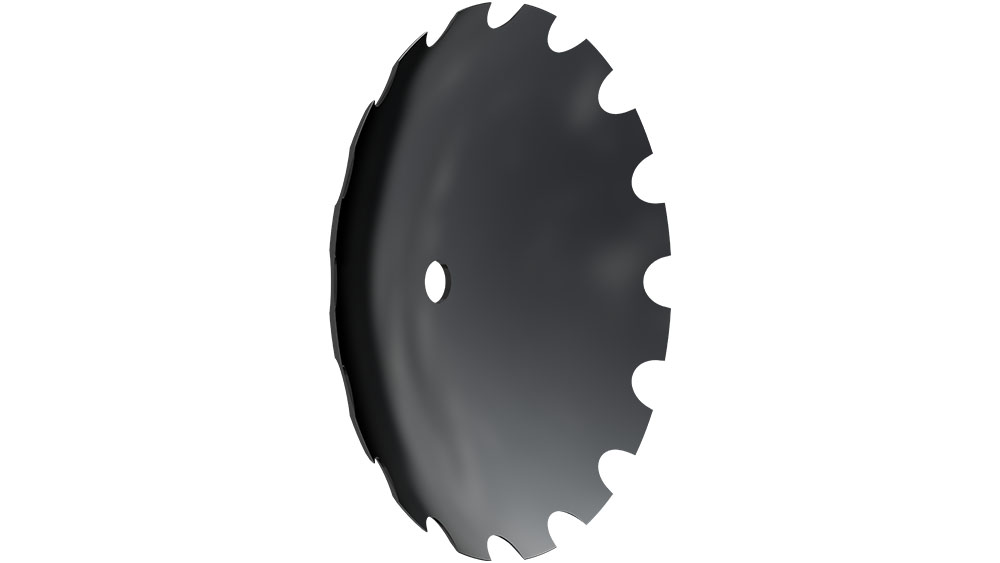

Notched concave disc
Technical data
| Y2000-10 | |
| Cutting width, ft | 11 |
| Number of bearings | 8 |
| Number of discs | 8F, 8R |
| Transport width, ft | 12.75 |
| Transport height, ft | 8.33 |
| Weight per disc, lbs | 935 |
| Weight per foot, lbs | 1,273 |
| Approx. weight, lbs | 14,873 |
