Wil-Rich 357
10-30 ft
16 in
> 140 hp
30 in
Deep subsoiling performance
The Wil-Rich 357 Inline Ripper is ideal for heavy residue conditions, featuring a strong, rugged design that penetrates even the hardest ground. It is available with rigid or spring reset options, and multiple tine options, including parabolic, minimal disturbance, and low disturbance tines. Break up compaction layers as deep as16 in and promote better water infiltration and root growth.
Reduce deep compaction layers
Soil compaction can significantly decrease yields. The Wil-Rich 357 Inline Ripper offers the strength needed to break up deep compaction layers for healthier, higher-yielding crops.
Alleviate tight soil structures
Tight, compacted soils have less ability to hold water and air. The Wil-Rich 357 Inline Ripper can loosen the soil to promote a healthier profile with greater pore space.
Increase water infiltration
Compaction restricts the ability of water to soak deep into the soil profile. Using the Wil-Rich 357 Inline Ripper not only improves water infiltration but also promotes deeper root growth.

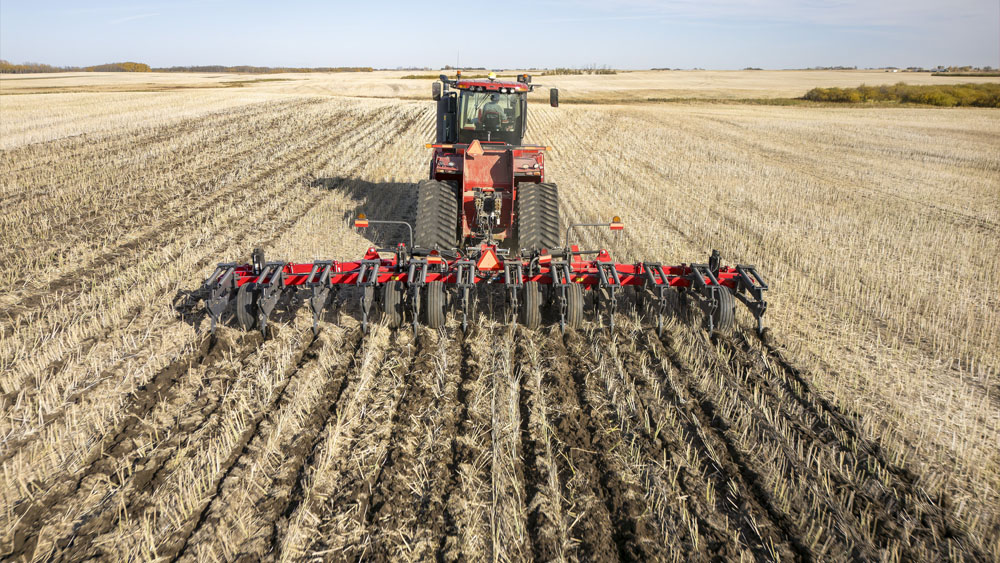

Excellent agronomic performance
Give your crop the best chance to succeed while reducing risks at the same time with the Wil-Rich 357 Inline Ripper.
-
Enhance soil health and crop yields
The Wil-Rich 357 breaks up deep compaction layers, improving soil tilth and water infiltration. This leads to healthier roots, better access to moisture and nutrients, and ultimately higher crop yields.
Swipe to read more ⮕
-

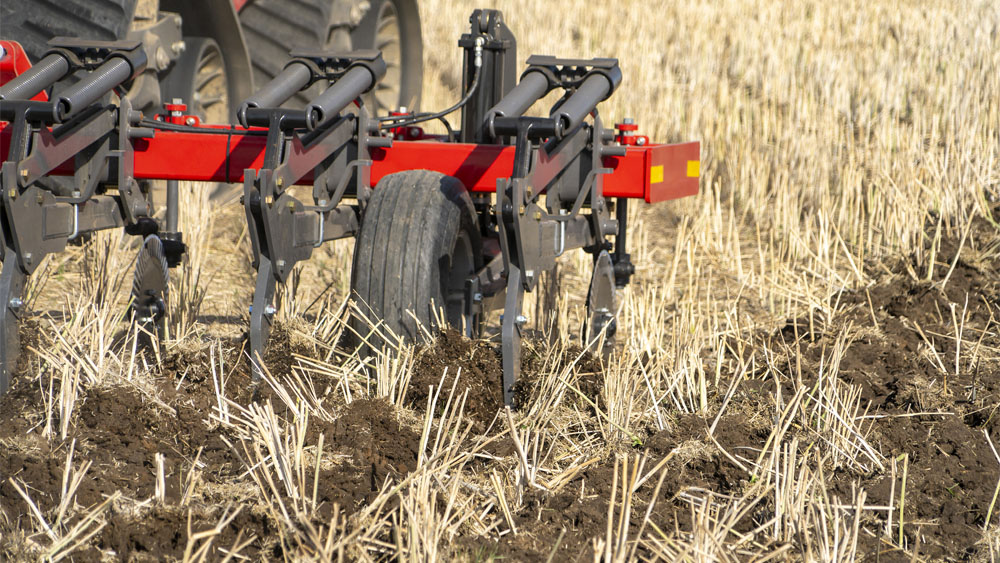

Deep ripping breaks up compaction layers
Compaction causes plant stress, increases the risk of root diseases, and hinders microorganism activity in the soil, among other negative effects. The heavy-duty Wil-Rich 357 Inline Ripper can penetrate tough soils and break up compaction layers as deep as 16 in. Eliminating compaction promotes healthier plant roots which, in turn, results in higher-yielding crops.
-
Achieving better soil tilth with an inline ripper
The tight structure of compacted soils reduces the amount of space available for water and air. This is especially true in heavy soils. The Wil-Rich 357 Inline Ripper has the strength to penetrate tough conditions. It breaks up compaction while mixing soil to provide an improved level of tilth. The loosened soil structure can hold more water and air, while providing a better environment for growing roots.
-
Improve water infiltration and root growth
Compaction layers restrict the movement of water and roots deeper into the soil. The Wil-Rich 357 Inline Ripper can help shatter compaction as much as 16 in deep. This improves water infiltration into the subsoil and enhances drainage to reduce the risk of waterlogging. It also helps roots to explore the soil more freely for better access to moisture and nutrients.

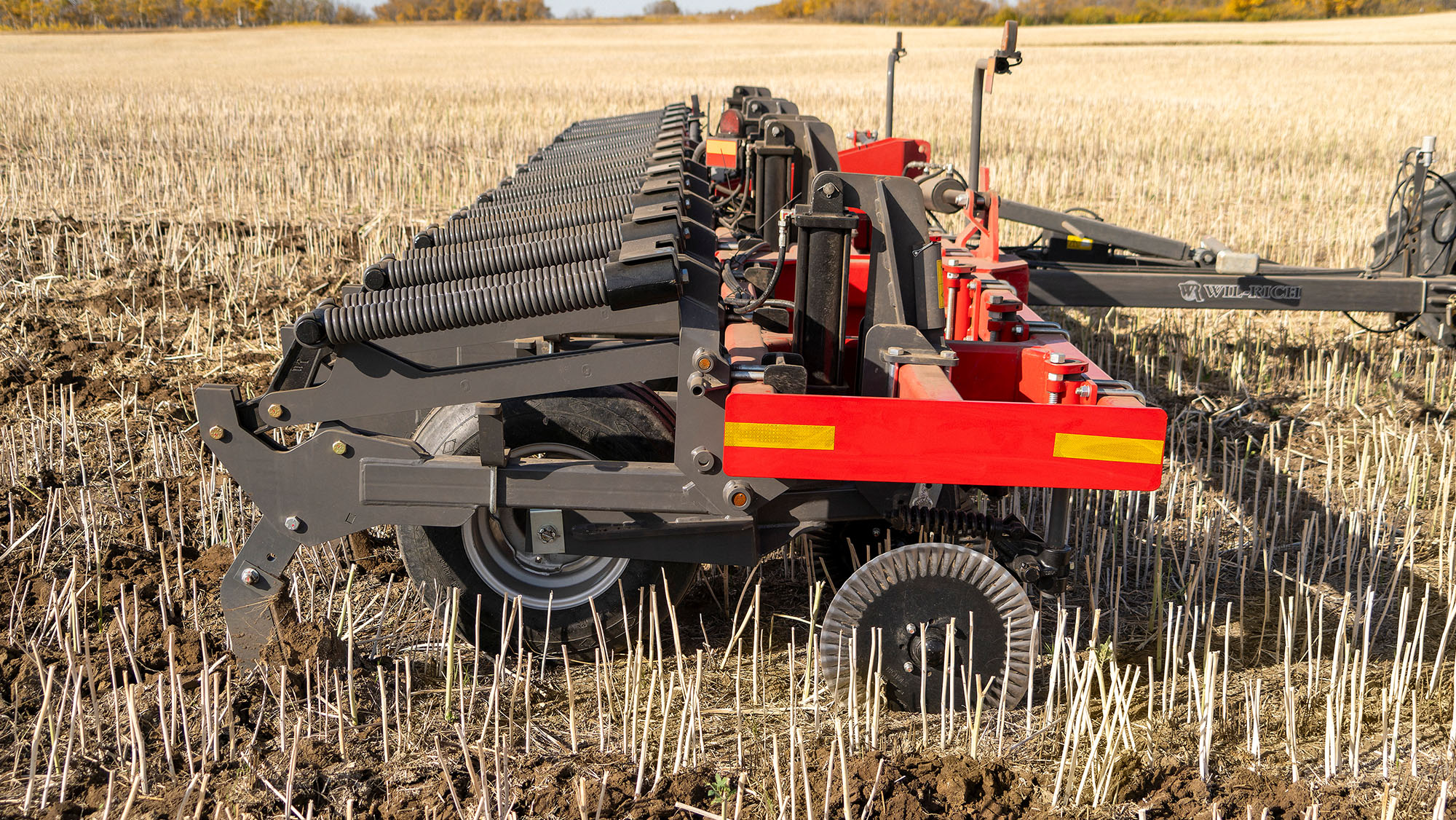

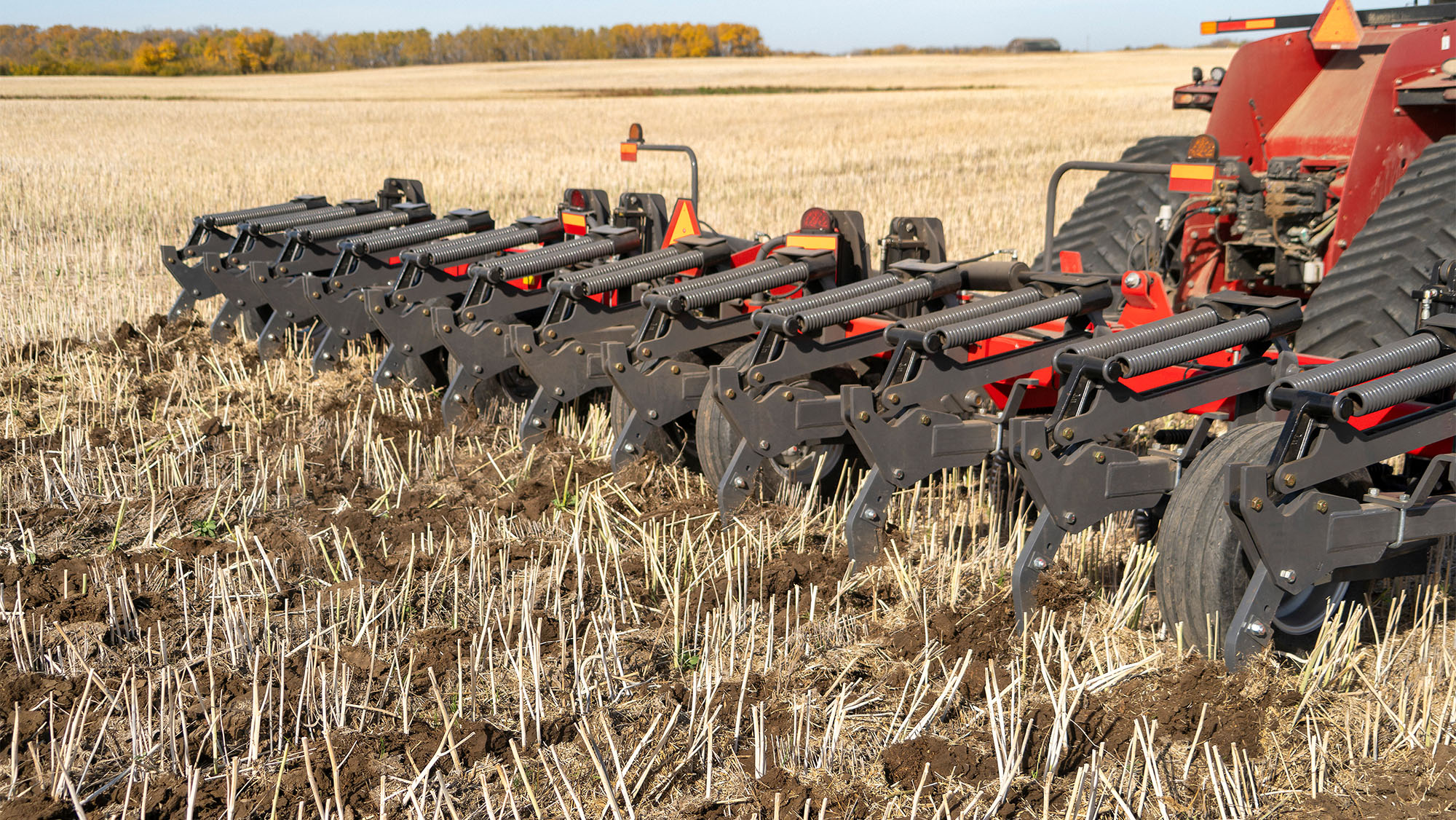

Versatile subsoiler for heavy residue conditions
The Wil-Rich 357 Inline Ripper is a versatile and robust machine designed for deep subsoiling in heavy residue conditions. It features multiple shank options and ripper points to suit various soil types, promoting better root growth and water infiltration. With its durable box frame, reliable spring reset trip assembly, and precise adjustable gauge wheels, it ensures long-lasting performance and optimal soil management, leading to improved crop yields. The machine offers versatile hitch options, including a three-point rigid mount and a pull type hitch with hydraulic lift wheels, accommodating different tractor setups for stable performance and easy manoeuvrability. Optional coulters enhance performance in heavy residue conditions, making it an essential tool for modern farmers.
Shanks and points for optimal soil management
The Wil-Rich 357 Inline Ripper is equipped with versatile shanks and ripper point options, designed to meet the diverse needs of modern agriculture. These components play a crucial role in ensuring effective soil penetration, loosening compacted layers, and promoting better root growth and water infiltration. By selecting the appropriate shanks and points, farmers can optimise their soil management practices and achieve improved crop yields.

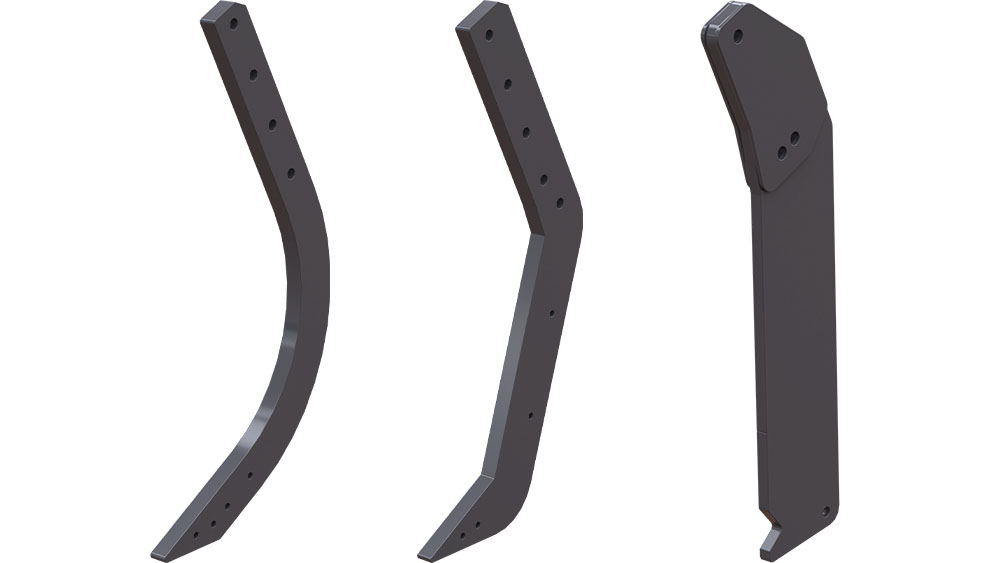

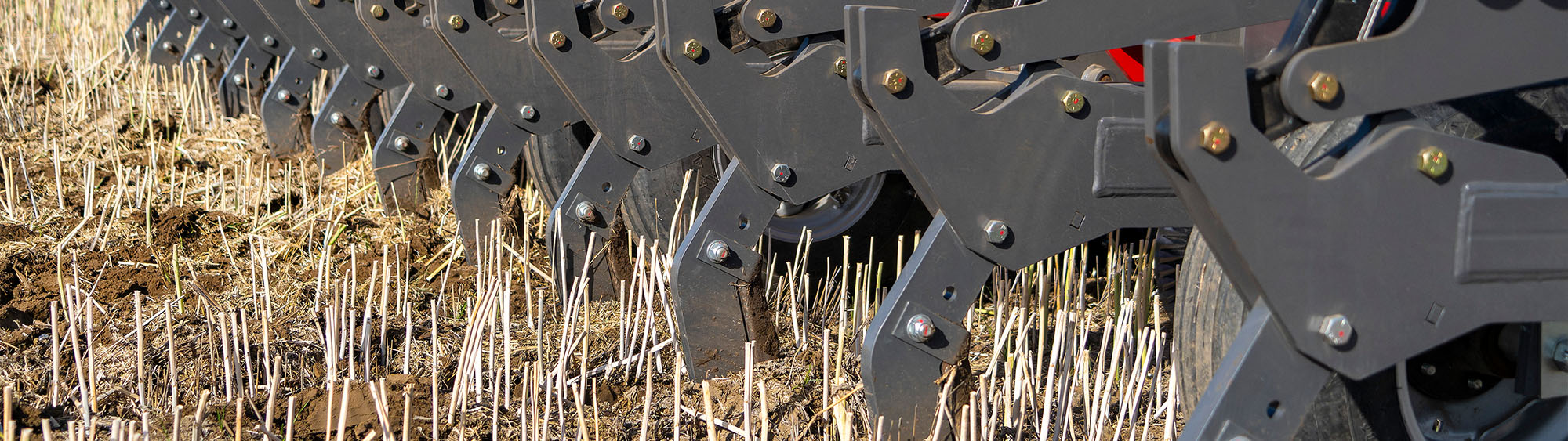

Shank options

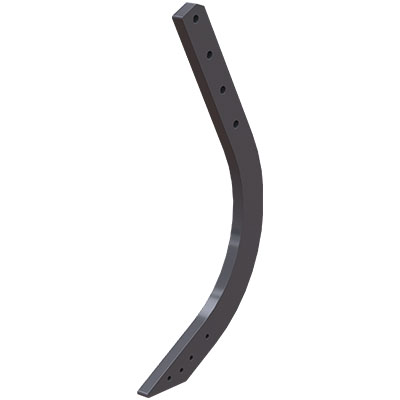

Parabolic shanks are the most aggressive option. They are designed for deep penetration, soil mixing, and loosening to promote better water infiltration and root growth.
Low disturbance shanks are a middle-of-the-road option that provides a balance of soil penetration and surface preservation. These are a suitable choice for many field conditions.
Minimal disturbance shanks break up deep compaction layers while maintaining soil structure and minimizing surface disruption. They produce a smoother field finish than other tines, as they provide less soil mixing.

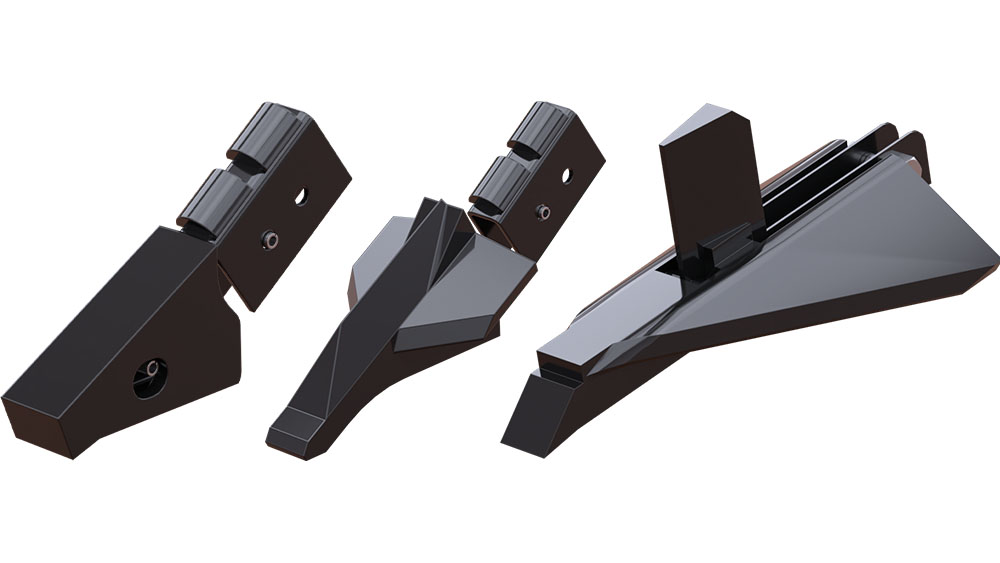

Point options
Multiple ripper points are available, ranging from 3 to 8 in to match different soil types and tillage needs.
Narrow points provide deeper penetration with minimal soil disturbance, making them a good choice for hard or compacted soils.
Wide points help break up larger clods and improve overall soil structure.
Choose between two hitch designs
The Wil-Rich 357 Inline Ripper offers versatile hitch options to accommodate different tractor setups.
A three-point rigid mount is standard on all models, except on the 12-shank. It provides a stable and secure connection to the tractor to help ensure precise performance in the field.

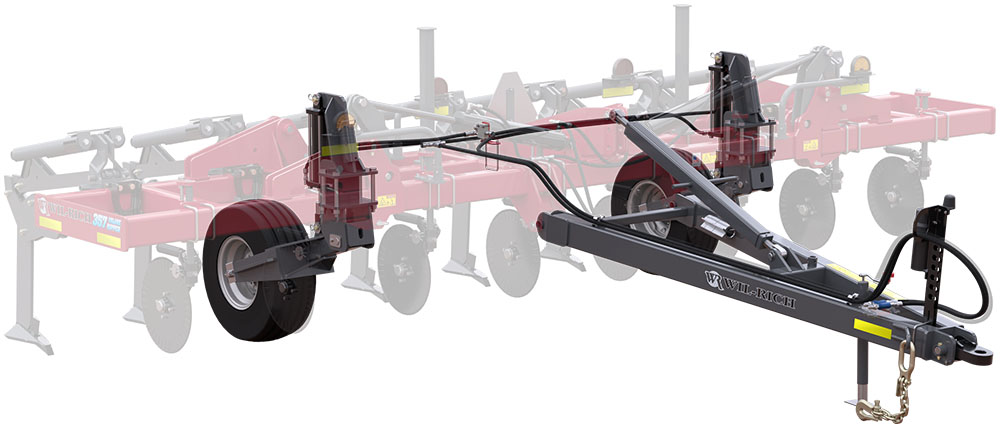

A pull-type hitch option includes hydraulic lift wheels for easy transport and manoeuvrability. A turnbuckle on the hitch is used to adjust the levelness of the frame.
A closer look at the Wil-Rich 357

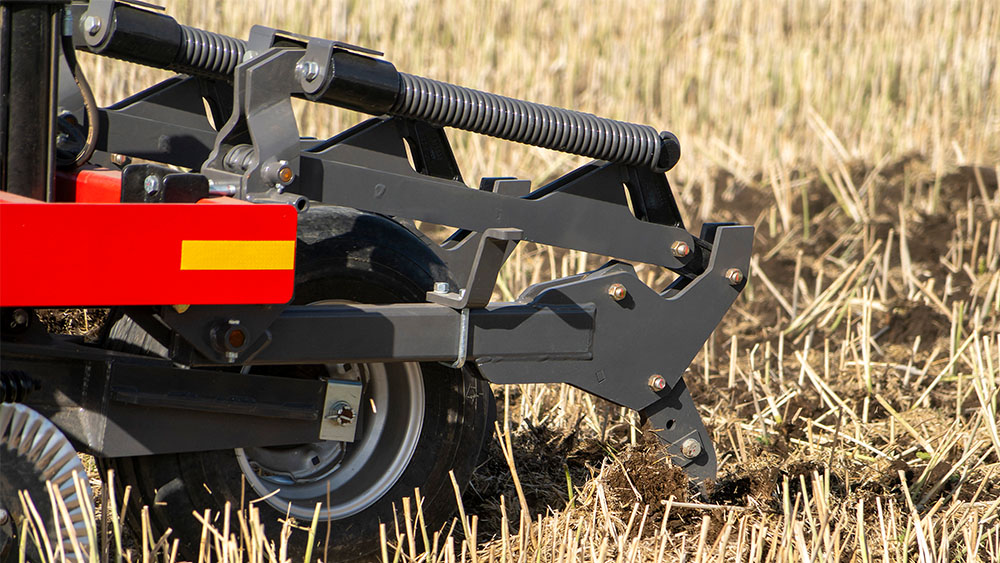

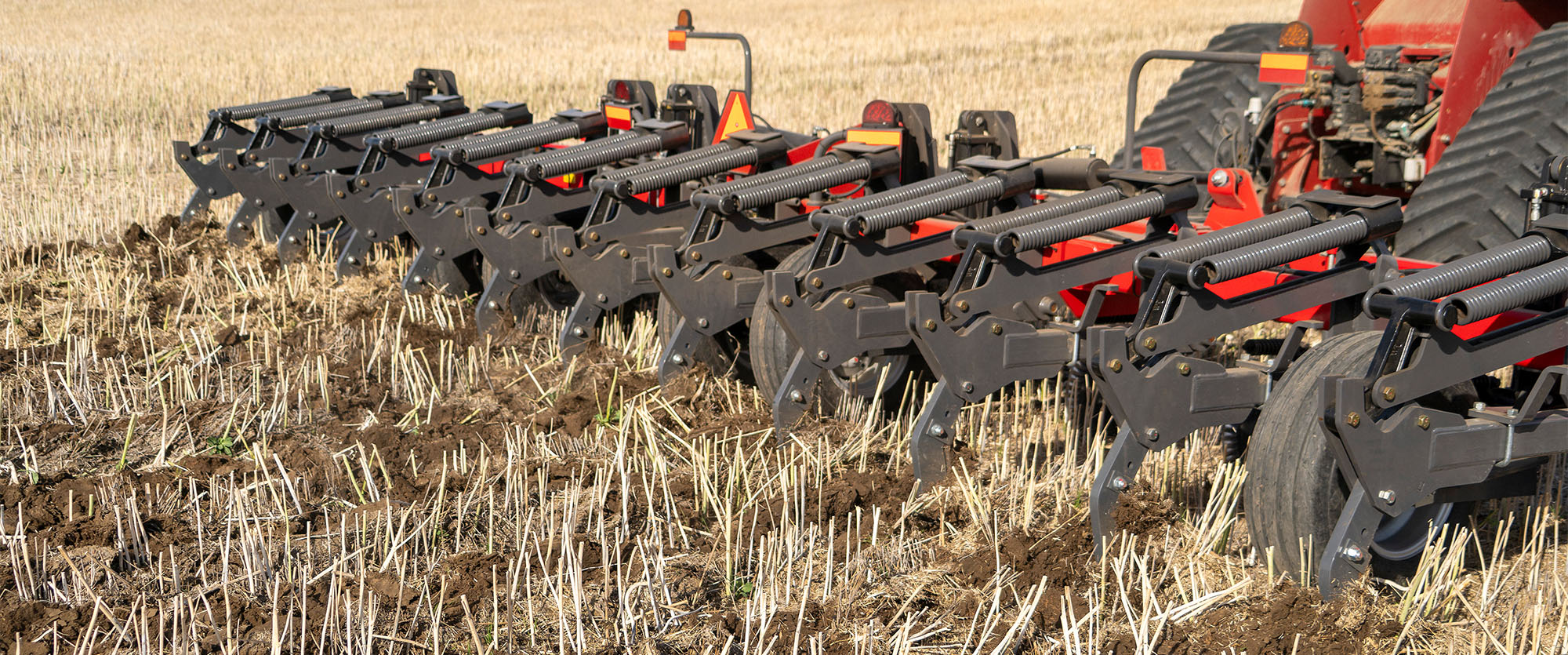

Reliable spring reset trip assembly
The spring reset trip assemblies help protect the machine from rock damage to minimize downtime and repair costs. The 4,250 lbs of trip pressure ensures proper soil penetration and helps maintain consistent shank depth, even in tough conditions.

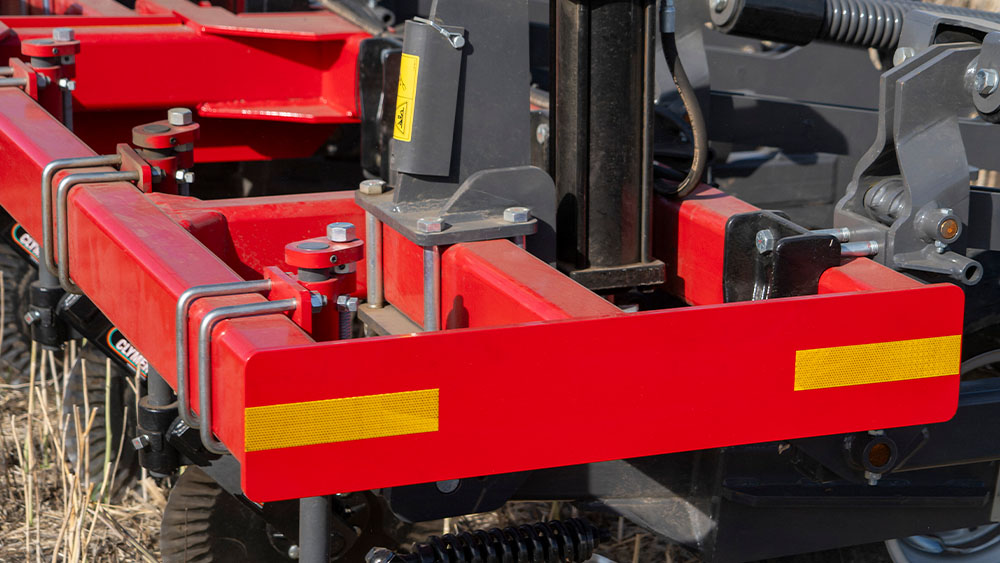

Box frame offers superior durability
The box frame design of the Wil-Rich 357 offers excellent durability for long-lasting performance and reliability, even in the most demanding field conditions. The tubular frame is 14 x 6 x 0.375 in, providing industry-leading strength.

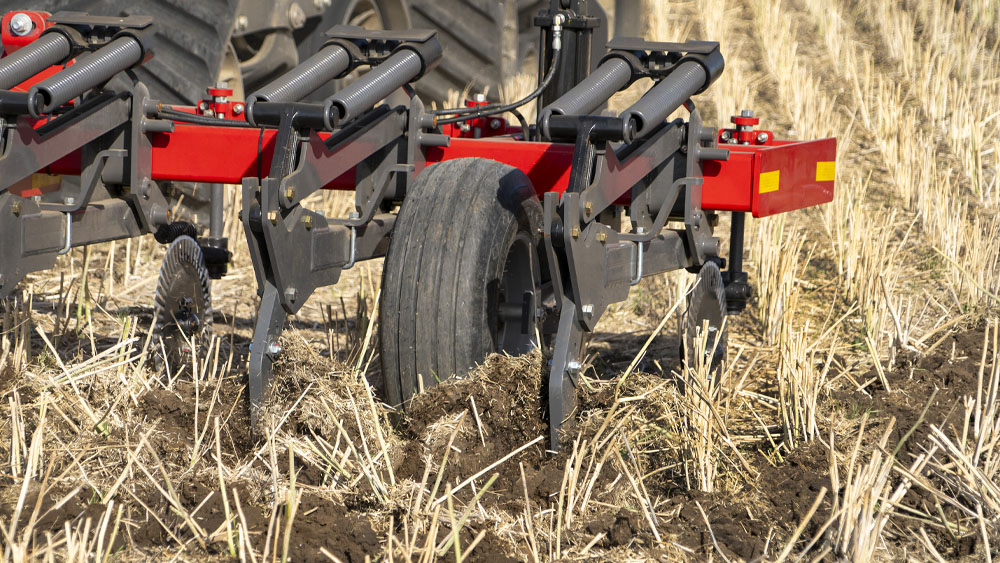

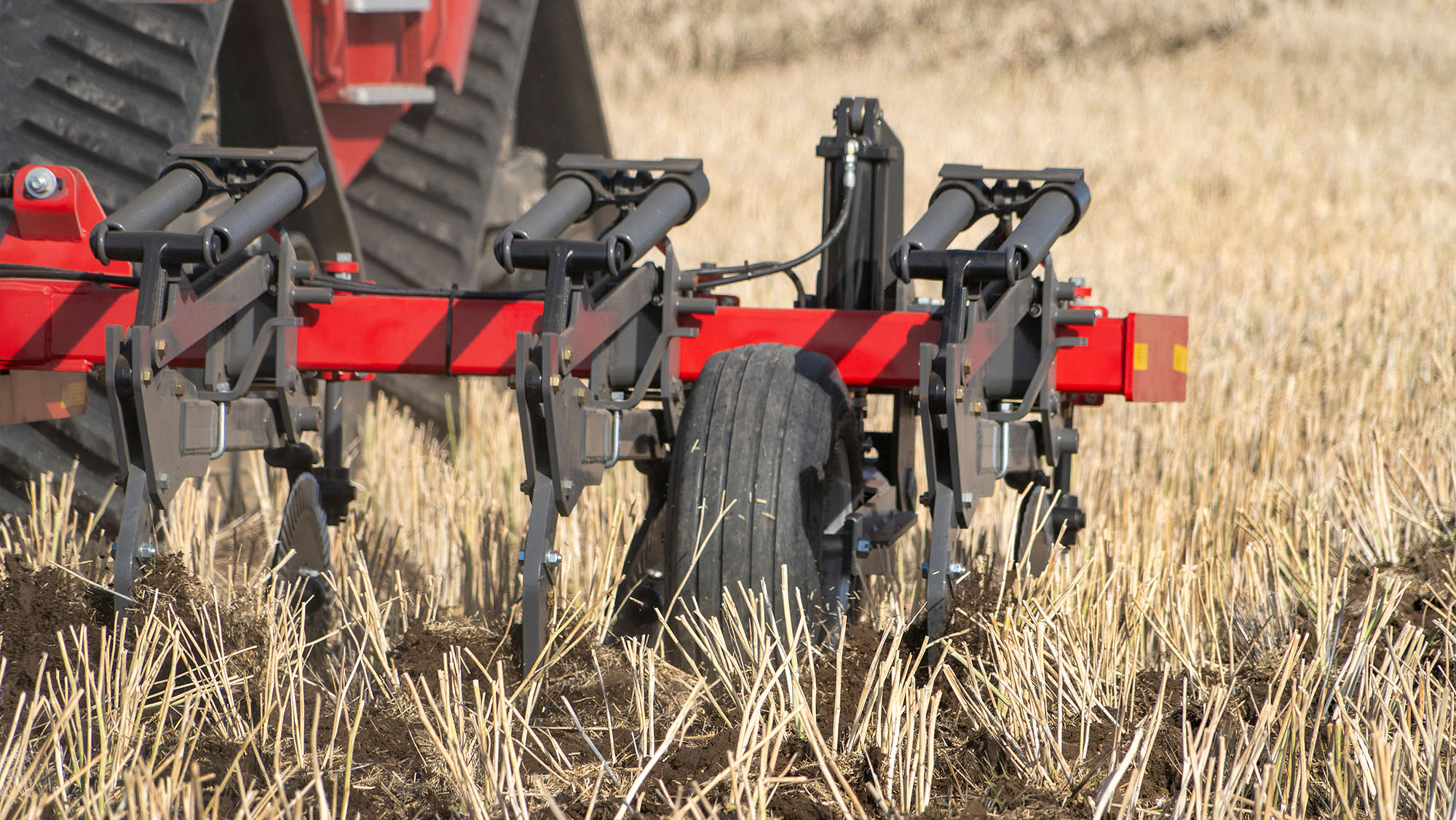

Precise adjustable gauge wheels
The adjustable gauge wheels on the Wil-Rich 357 Inline Ripper ensure uniform working depth across various soil types and conditions. The eight settings allow for precise depth control, ensuring consistent soil preparation and optimal seedbed conditions.

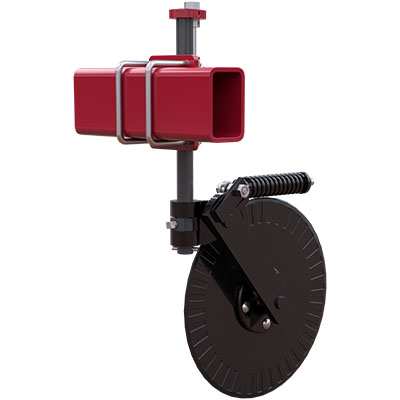

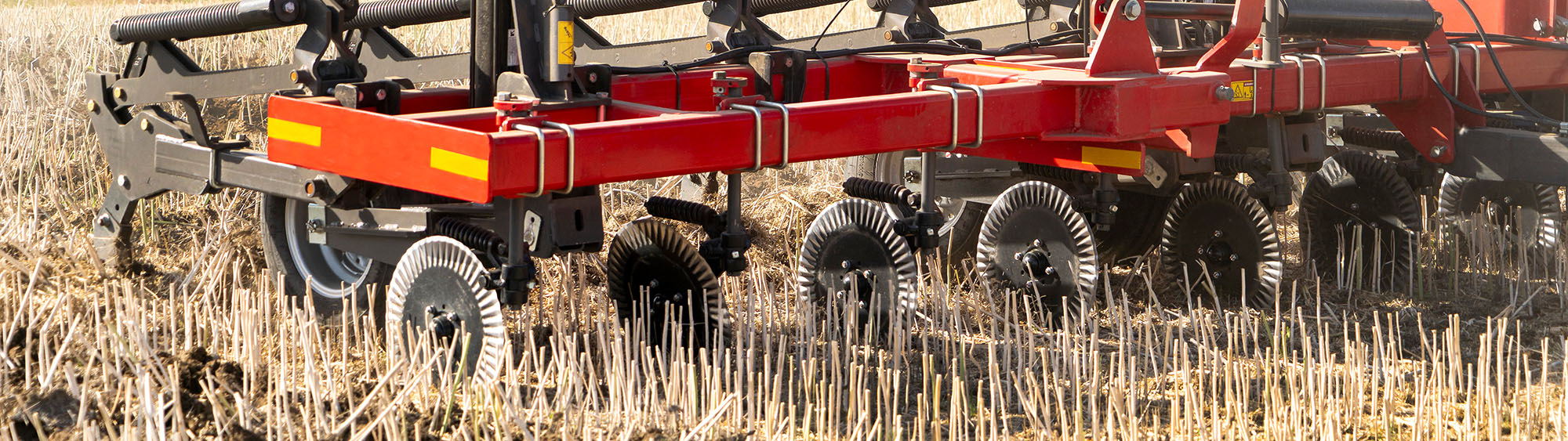

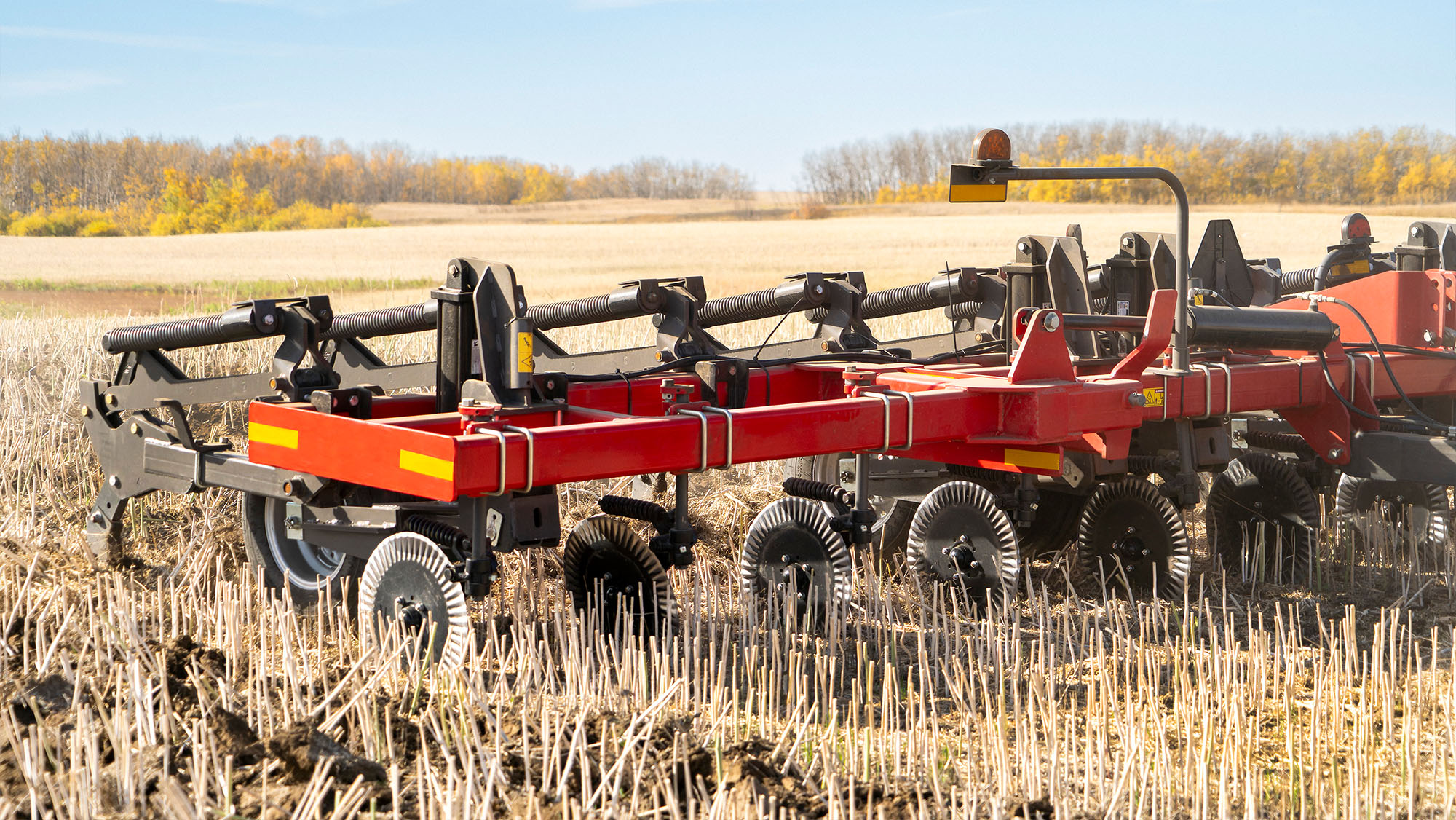

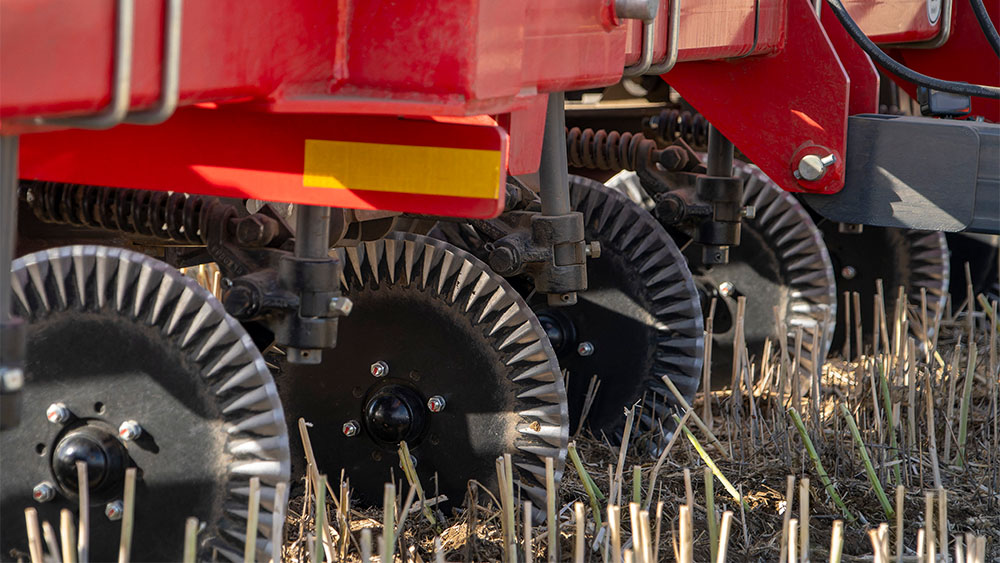

Cut residue with optional coulters
The Wil-Rich 357 Inline Ripper can be equipped with optional coulters for heavy residue conditions. The serrated coulters cut residue to reduce plugging at the shanks, enhancing it's ability to ability to penetrate the soil. The coulters also aid in reducing wear on the shanks and minimize soil disturbance on the surface, making it slightly easier to pull. The 20 in coulters are spring-loaded for added rock protection.
Product concept

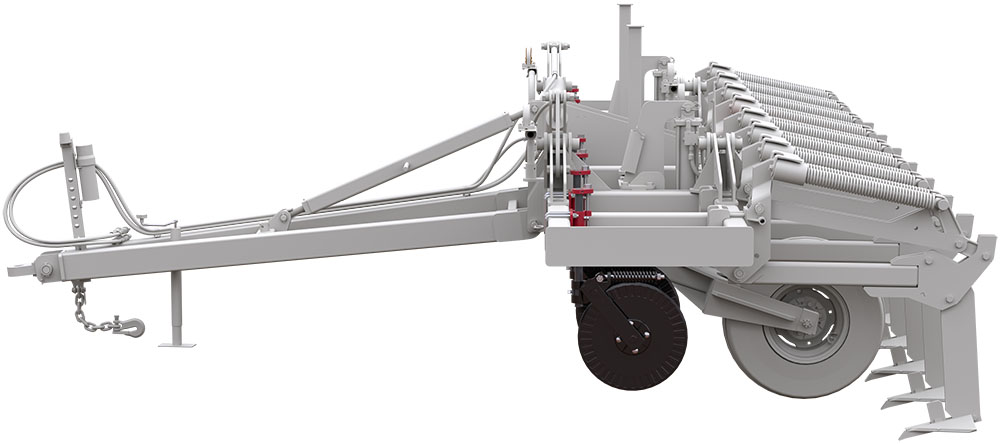

Zone 1 – Cutting
Optional serrated coulters cut through tough residue ahead of the shanks to help prevent plugging.
Spring-loaded coulters

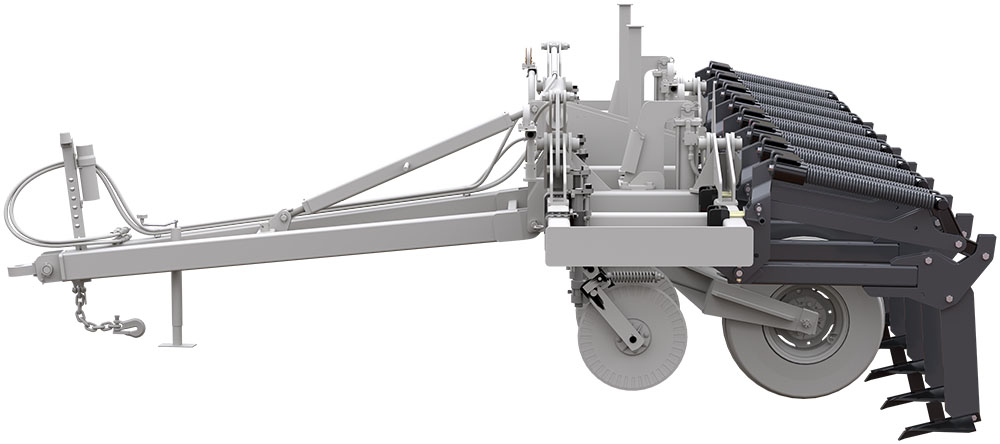

Zone 2 – Mixing
Heavy-duty tines break up deep compaction layers to improve water infiltration and root growth. Multiple shank and point options are available to achieve the desired results in a variety of soil conditions.

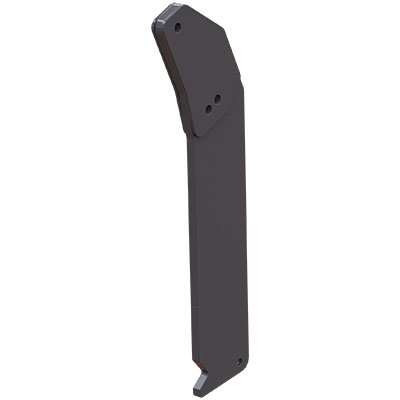

Minimal disturbance tine

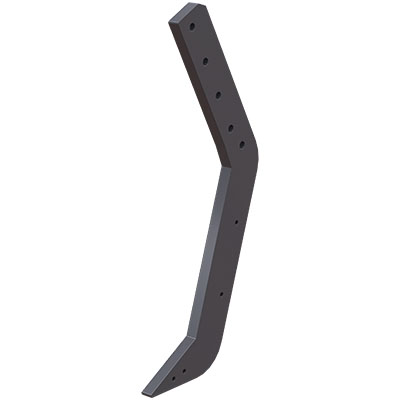

Low disturbance tine
Parabolic tine
3" straight point with guard

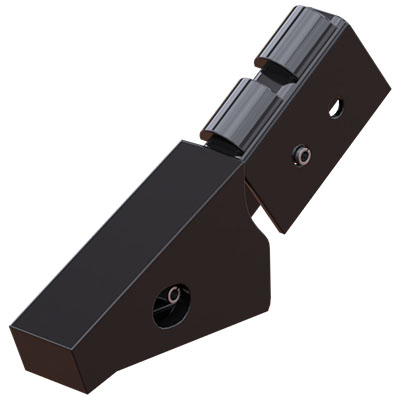

7" wing point with guard

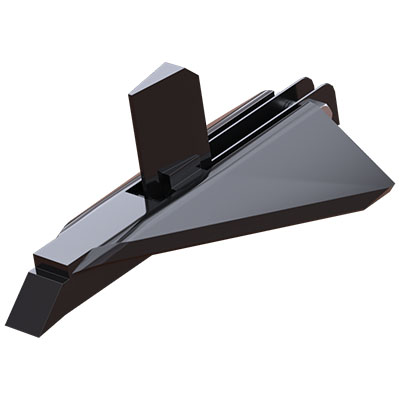

8" wing point
Gallery
Technical data
| 3-5 3-Point 30 | 5 3-Point 30 | 5-7 3-Point 30 | 4 3-Point 30 | |
| Rigid/Folding | Rigid | Rigid | Rigid | Rigid |
| Shank spacing, in | 30 | 30 | 30 | 30 |
| Working width, ft | 12.5 | 12.5 | 17.5 | 10 |
| Number of Shanks | 3-5 | 5 | 5-7 | 4 |
| Transport width, ft | 10.8 | 10.8 | 16.2 | 10.8 |
| Transport height, ft | - | - | - | - |
| Weight*, lbs | 1,222 | 1,190 | 1,875 | 1,190 |
| Horsepower requirement | 175-250 | 175-250 | 245-350 | 140-200 |
| 4-6 3-Point 30 | 8 3-Point 30 | 8 3-Point 30 | 12 Pull 30 | |
| Rigid/Folding | Rigid | Rigid | Folding | Folding |
| Shank spacing, in | 30 | 30 | 30 | 30 |
| Working width, ft | 15 | 20 | 20 | 30 |
| Number of Shanks | 4-6 | 8 | 8 | 12 |
| Transport width, ft | 14.3 | 20.2 | 12 | 16.4 |
| Transport height, ft | - | - | 11 | 15 |
| Weight*, lbs | 1,529 | 1,840 | 2,607 | 6,909 |
| Horsepower requirement | 210-300 | 280-400 | 280-400 | 420-600 |
*Approx weight: base weight (less shanks)
