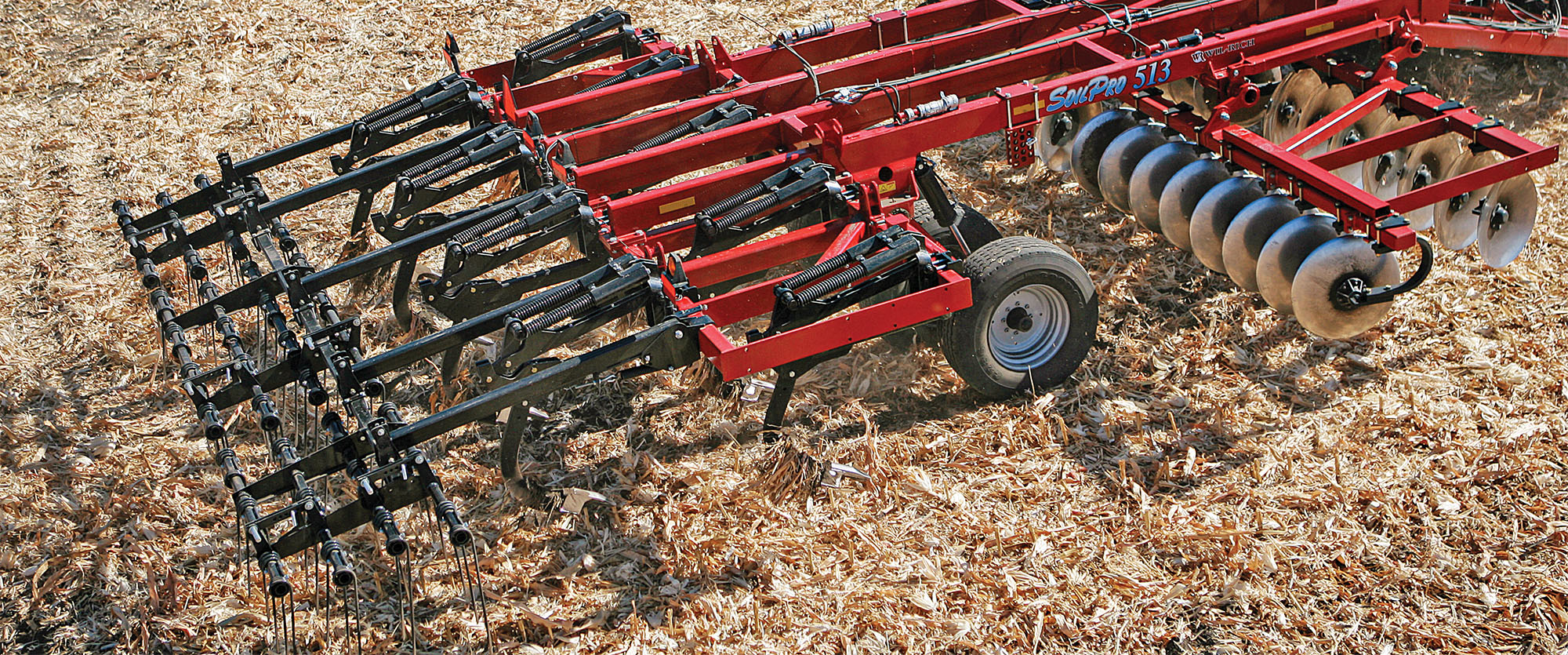

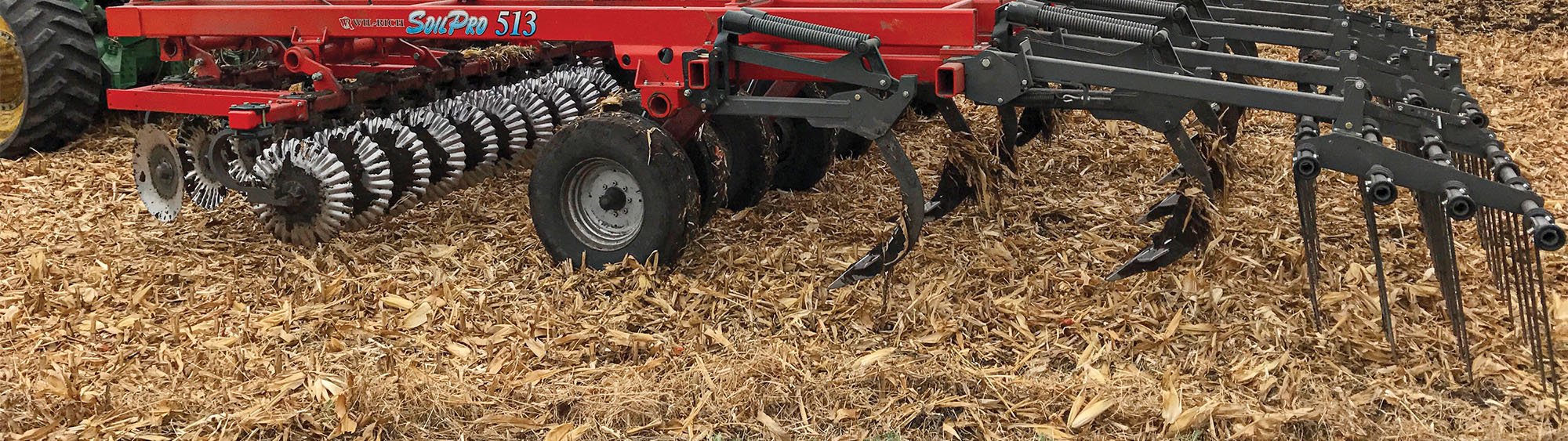

Wil-Rich SoilPro 513
13-26 ft
14 in
>300 hp
24-30 in
Designed for optimal soil penetration
The Wil-Rich SoilPro 513 Disc Ripper from Wil-Rich is engineered to perform in diverse soil conditions, ensuring effective primary tillage. This machine leaves a smooth, uniform surface, ideal for seedbed preparation, benefiting farmers by enhancing crop establishment.
Reduced deep compaction
The two rows of parabolic ripper tines on the Wil-Rich SoilPro 513 shatter compaction up to 14 in deep to prommote healthier plants.
Enhanced residue incorporation
The concave discs on the Wil-Rich SoilPro 513 cut and mix residue with soil, promoting fast decomposition.
Improved water infiltration
Compaction limits the ability of water to soak into the soil profile. The SoilPro 513 breaks up compacted layers to improve water infiltration.
Excellent agronomic performance
The SoilPro is a versatile tool designed to break up compaction layers while thoroughly mixing residue in a variety of soil conditions with ease. It leaves the field ready to retain moisture, break down residue and be easily prepped for planting in the next growing season.
-
Enhance crop health and yield
The Wil-Rich SoilPro 513 shatters deep compaction, incorporates residue for faster decomposition, and improves water infiltration. These features lead to healthier plants, better root growth, and higher yields by creating a looser soil profile, reducing plant stress, and ensuring optimal moisture access.
Swipe to read more ⮕
-

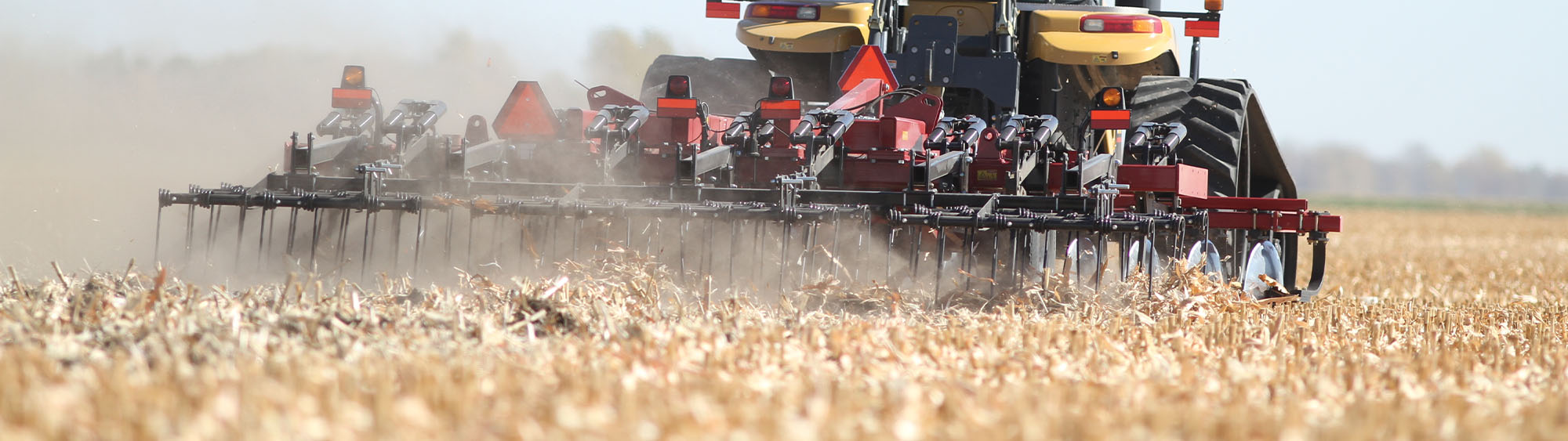

Shattering compaction to increase yields
Compaction causes plant stress and leads to lower yields. The two rows of heavy-duty shanks on the Wil-Rich SoilPro 513 can thoroughly shatter compaction across the width of the implement at depths up to 14 in. This creates a better, looser soil profile for improved root growth, healthier plants, and higher yields.
-
Incorporate residue for faster decomposition
The Wil-Rich SoilPro 513 increases field efficiency by cutting and incorporating residue as well as shattering compaction. Its large concave discs thoroughly mix large amounts of soil and residue, creating excellent soil-to-residue contact. This helps the residue to break down more quickly ahead of spring planting, so it doesn’t interfere with seed placement or emergence.
-
Achieve healthier crops by improving water infiltration
The Wil-Rich SoilPro 513 shatters deep compaction to help water soak deeper into the subsoil without restriction. By increasing water infiltration rates, farmers can also experience reduced ponding, waterlogging, and runoff issues. All of these benefits lead to healthier, higher-yielding crops because they have better access to deep moisture with less risk of developing problems from overly saturated soils.
Enhanced farming efficiency and productivity
The Wil-Rich SoilPro 513 is equipped with a range of advanced features designed to enhance farming efficiency and productivity. From versatile cutting widths and robust frame construction to efficient residue management and advanced hitch systems, each function of the SoilPro 513 is tailored to meet the diverse needs of modern agriculture. These features work together to ensure optimal soil preparation, improved crop establishment, and long-lasting performance in various soil conditions.

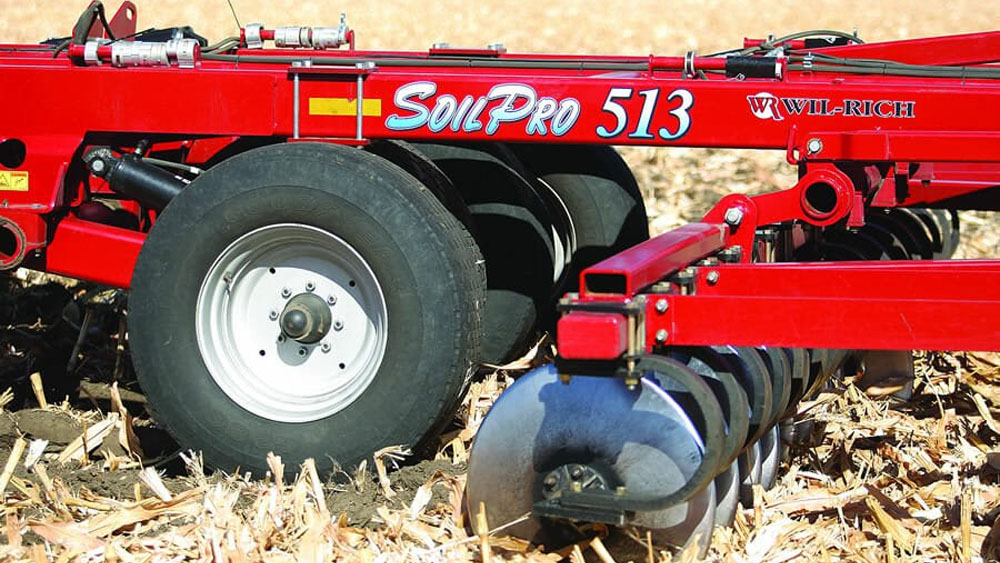

Versatile cutting widths
Available in cutting widths ranging from 12.5 ft to 26 ft, the Wil-Rich SoilPro 513 features industry-leading, large-diameter 28 in discs disc blades on two-rank individual C-spring disc blade mounting to bury and mix residue for quick decomposition. The 3,500 lb trip pressure ripper shanks penetrate even the toughest soil.

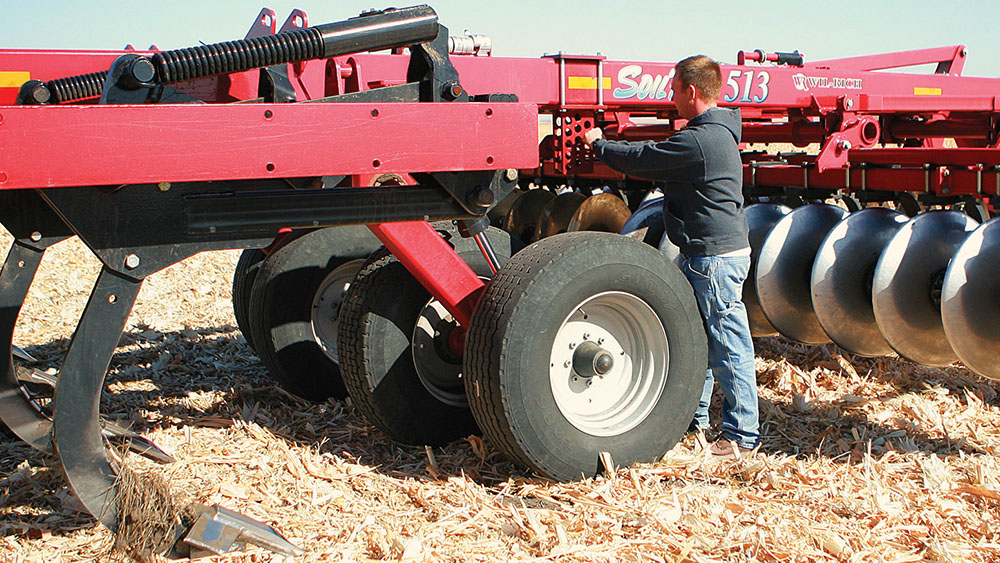

Robust frame construction
The heavy-duty 4 x 8 in frame adds additional weight to keep the tool in the ground and ripping through even the heaviest residue. This robust construction enhances durability and longevity, making it a reliable choice for intensive farming operations.

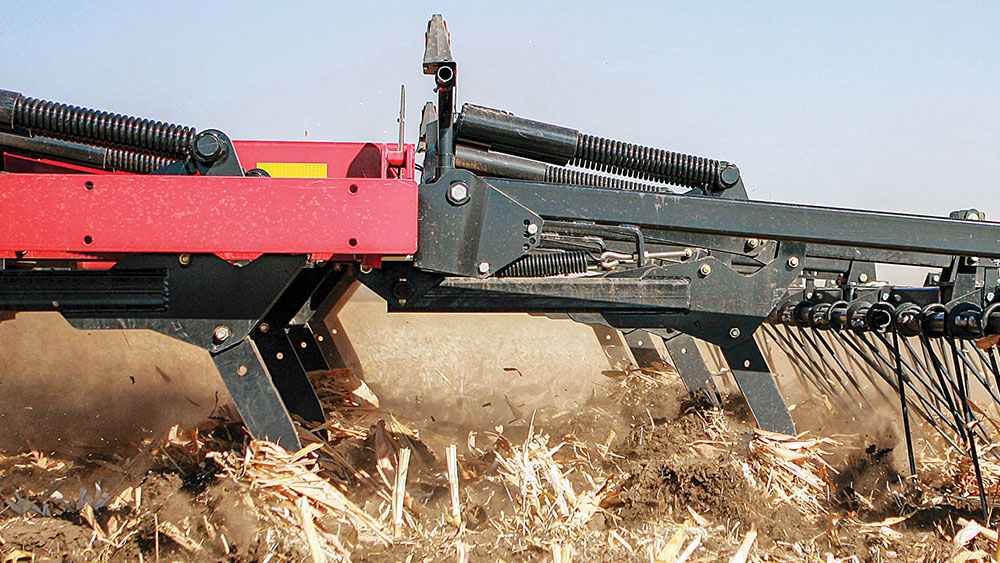

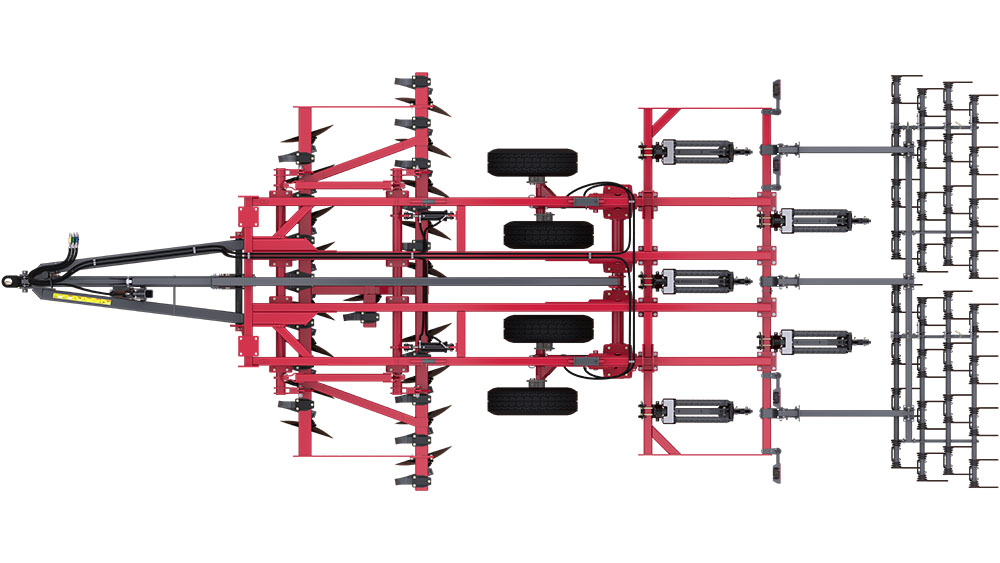

Efficient rank spacing
The Wil-Rich SoilPro 513 has its shanks arranged in two ranks, spaced 55 in apart. The shanks within each rank are spaced 48 in apart, resulting in an effective spacing of 24 in (30 in for 5-Shank models), promoting excellent crop residue flow, reducing clogging and improving operational efficiency.

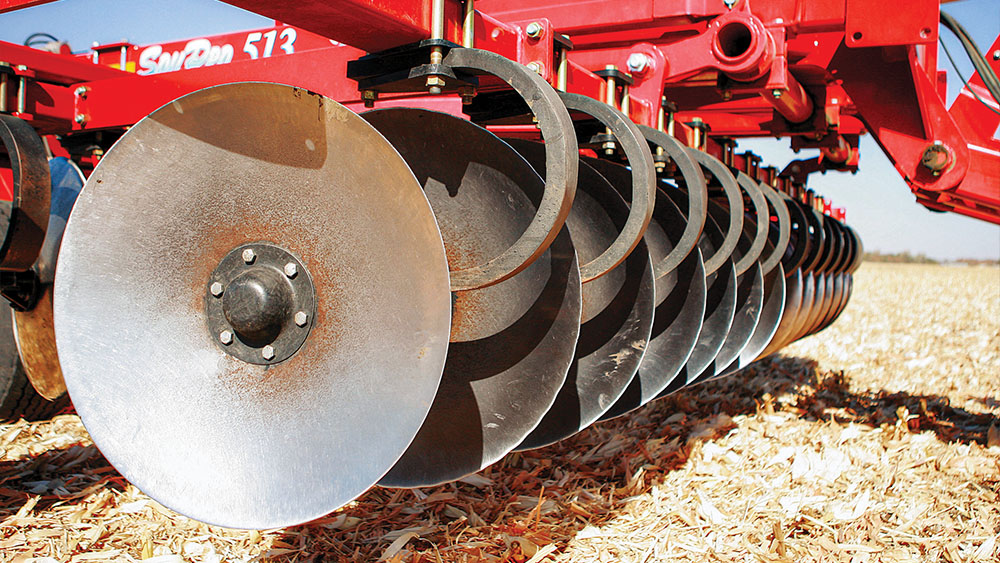

High-performance disc blades
Individually mounted C-spring 28 in disc blades have an effective spacing of 19 in. This configuration ensures consistent soil penetration and residue mixing, enhancing soil health and crop productivity.

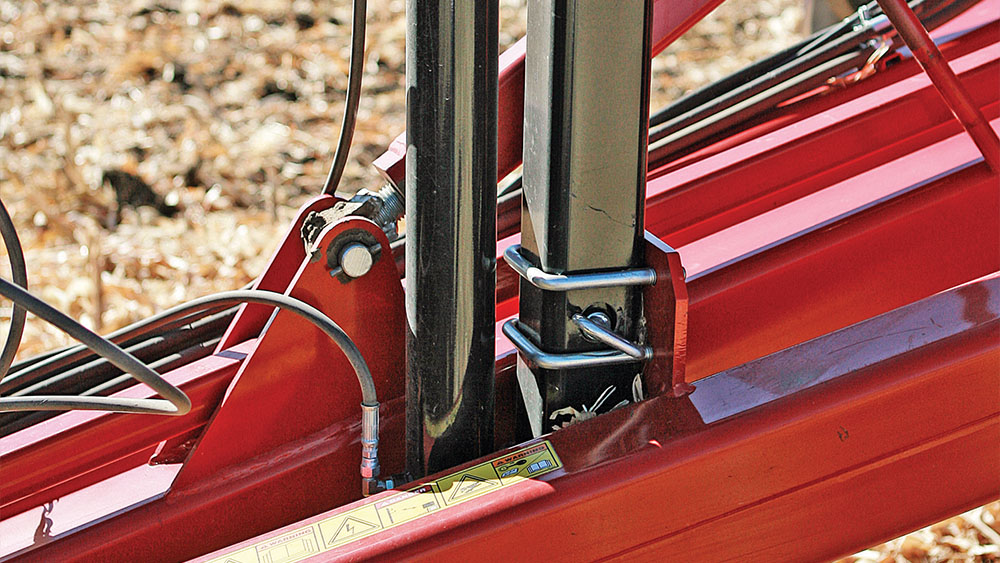

Easy hitch setup for efficient operation
The Wil-Rich SoilPro 513 comes standard with a hydraulic jack. It features a level lift hitch and a fabricated steel Cat. V tongue hitch for a 2.75 in diameter pin, designed to accommodate today's largest horsepower tractors, providing easy attachment and stability, simplifying setup and operation for farmers.
Product concept

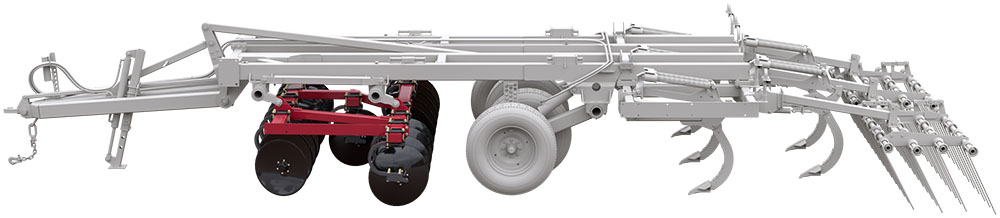

Zone 1 – Cutting
The large concave discs thoroughly mix a large amount of soil and residue, creating excellent soil-to-residue contact.

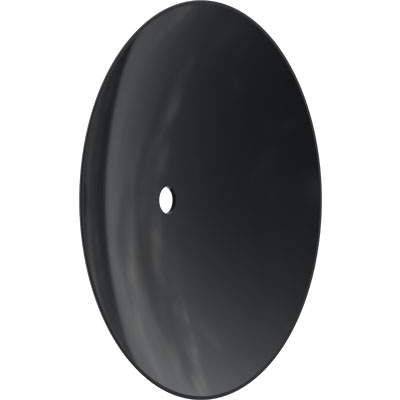

Disc

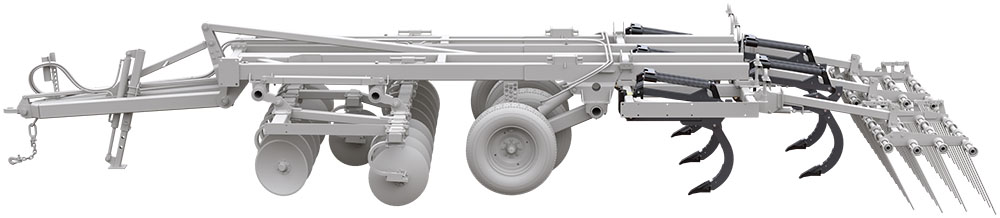

Zone 2 – Soil Fracturing
Heavy-duty shanks break up deep compaction layers to improve water infiltration and root growth. Multiple tine and point options are available to achieve the desired results in a variety of soil conditions.

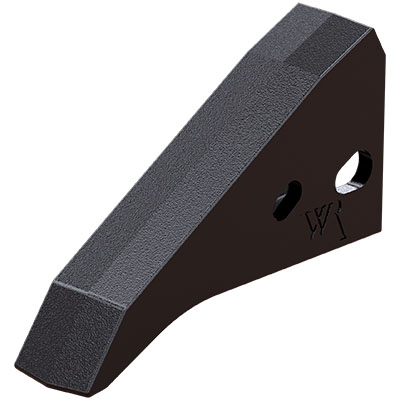

3" straight point

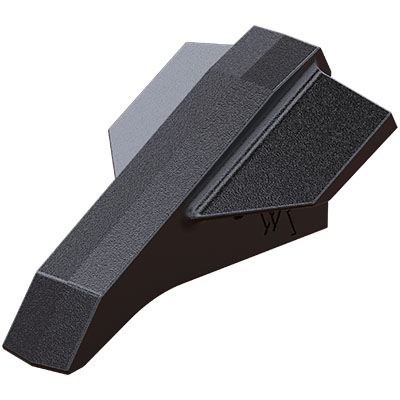

7" wing point

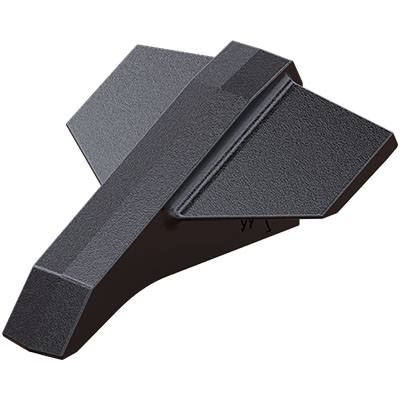

10" wing point

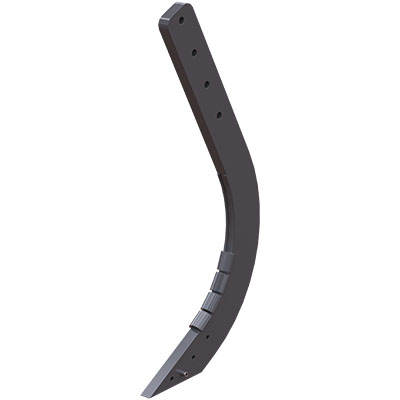

Parabolic tine

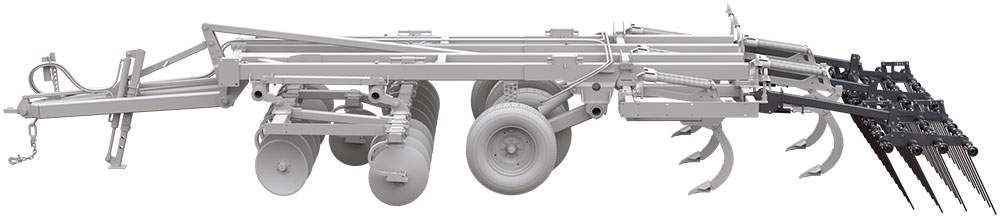

Zone 3 – Levelling
Finishing attachments create a level soil profile, setting the stage for an ideal seedbed in the spring. They also help distribute residue and break up clods.

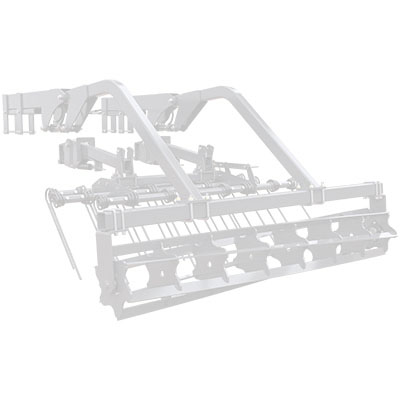

2-bar coil tine harrow with flat bar rolling basket combination
4-bar coil tine harrow
Technical data
| 5-30 SP 513 | 7-24 SP 513 | 9-24 SP 513 | |
| Rigid/Folding | rigid | rigid | rigid |
| Number of shanks | 5 | 7 | 9 |
| Number of blades | 18 | 18 | 24 |
| Shank spacing, in | 30 | 24 | 24 |
| Working width, ft | 12.5 | 14 | 18 |
| Transport width, ft | 16.2 | 16.2 | 21.25 |
| Transport height, ft | 7 | 7 | 7 |
| Transport length, ft | 33.4 | 33.4 | 33.4 |
| Weight*, lbs | 17,180 | 18,061 | 21,143 |
| Horsepower requirement | 300-400 | 300-450 | 350-450 |
| 9-24 SP 513 | 11-24 SP 513 | 13-24 SP 513 | |
| Rigid/Folding | folding | folding | folding |
| Number of shanks | 9 | 11 | 13 |
| Number of blades | 24 | 30 | 34 |
| Shank spacing, in | 24 | 24 | 24 |
| Working width, ft | 18 | 22 | 26 |
| Transport width, ft | 15.75 | 19.25 | 19.25 |
| Transport height, ft | 11.8 | 13.7 | 19.25 |
| Transport length, ft | 33.4 | 33.4 | 33.4 |
| Weight*, lbs | 22,567 | 32,280 | 33,688 |
| Horsepower requirement | 350-450 | 450-550 | 500+ |
*Approx weight: base weight, no attachments
** Adding harrows to a unit may increase the transport width and/or height of the unit.
