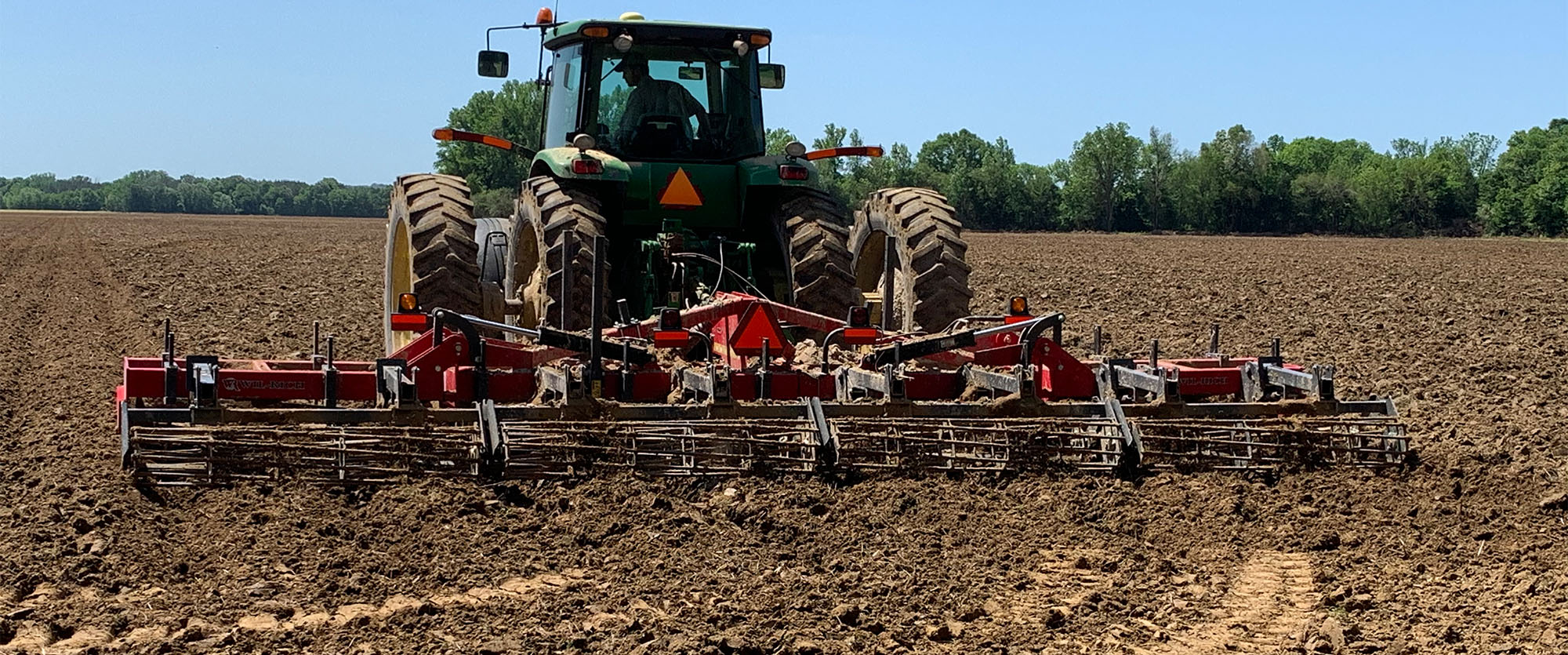

Wil-Rich 1500 Series
36-40 in
>200 hp
25-39 ft
Efficient raised bed preparation
The Wil-Rich 1500 Series is a seedbed finisher perfect for creating a finished and conditioned raised bed. The 1500 Series penetrates the ground to improve irrigation and drainage by forming a raised bed and shaping irrigation and drainage furrows in a single pass. This machine mixes, smooths, and firms the ground, preparing your fields for even emergence of crops. As a one-pass preparation tool, the Wil-Rich 1500 Series saves time, fuel, and labor costs by combining several field operations.
Efficient water management
The Wil-Rich 1500 Series shanks are engineered to create optimal irrigation and drainage furrows, ensuring effective water management for your crops.
Field efficiency
The Wil-Rich 1500 Series forms raised beds, prepares the seedbed, as well as smoothing and firming the soil in one pass, saving time, fuel, and labor costs.
Ideal seedbed preparation
The shanks, reels, and conditioning baskets on the Wil-Rich 1500 Series work together to size residue, as well as smooth and firm the soil, resulting in an ideal seedbed.
Excellent agronomic performance
Preparing your fields with the Wil-Rich 1500 Series sets the stage for a successful growing season. By integrating multiple tasks into one efficient pass, this machine enhances water management, field efficiency, and seedbed preparation. Ensure your crops have the best start while reducing risks and saving time, fuel, and labor costs throughout the year.
-
Enhance emergence and soil health
The Wil-Rich 1500 Series combines multiple tasks in one pass. It creates clean furrows, breaks up clods, incorporates chemicals, and levels the seedbed. Double conditioning baskets ensure a well-prepared seedbed for even germination and emergence.
Swipe to read more ⮕
-
Manage water with irrigation and drainage furrows
The Wil-Rich 1500 Series features two rows of shanks that are equipped with furrow shovels. One row is placed in front of the cutter reel, and the other is behind. The shanks can be adjusted up-and-down to achieve the desired depth. They create clean and well-shaped furrows for effective irrigation and drainage applications.
-
Achieve multiple objectives in one pass
The Wil-Rich 1500 Series forms raised beds while shaping irrigation and drainage furrows. It also prepares the seedbed by sizing residue, as well as smoothing and firming the soil. By accomplishing all of these tasks in one pass, operators can save time, fuel, and labor costs. They can also help ensure fieldwork is completed in a timely manner to ensure planting occurs in the ideal window of time.
-
Raised beds fit for planting
The cutter reel on the Wil-Rich 1500 Series is designed to cut residue, break up clods, and level the top of the seedbed. Double conditioning baskets at the back of the implement further reduce clod sizes and level the surface, while firming the soil profile to create excellent planting conditions.
Create a finished and conditioned raised bed in one pass
The Wil-Rich 1500 Series combines multiple tasks into one efficient pass. It penetrates the ground to improve irrigation and drainage, forming raised beds and shaping furrows. The machine mixes, smooths, and firms the ground, ensuring even crop emergence. As a one-pass tool, the Wil-Rich 1500 Series saves time, fuel, and labor costs, making it an invaluable addition to any farming operation.

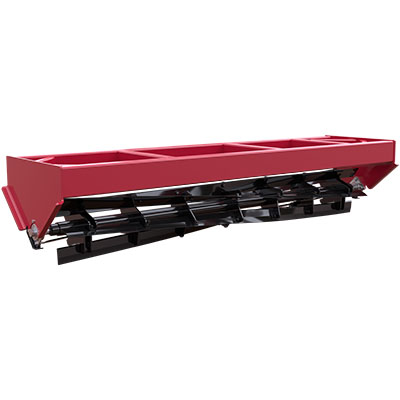

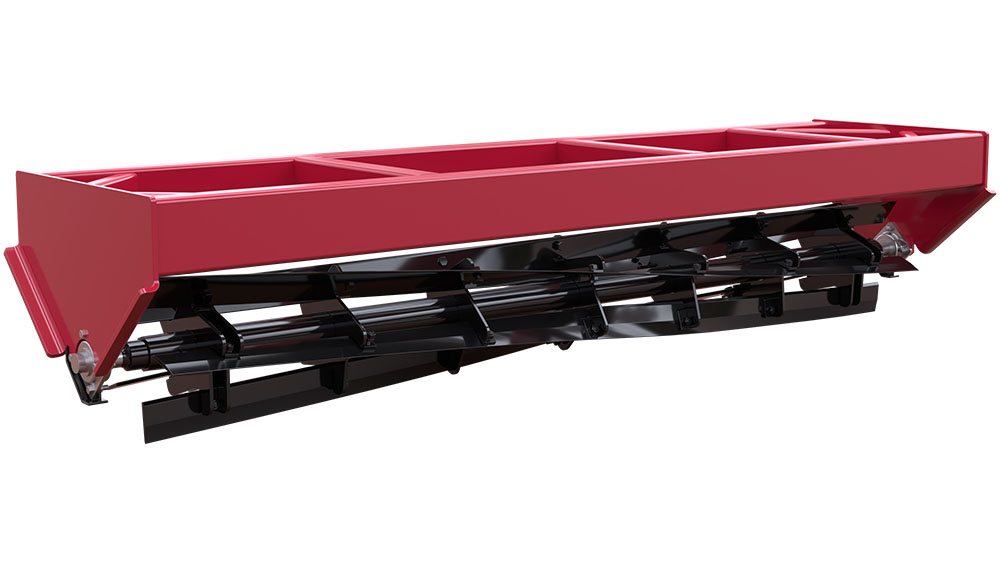

Cutter reel for effective soil preparation
The core feature of the Wil-Rich 1500 Series is the 5-bar cutter reel. The spiral design is made with 1 x 9.8 cm (3/8 x 4-1/8 in) plow share steel to penetrate the ground up to 10 cm (4 in), breaking up clods, incorporating chemicals, and leveling the top of the seedbed. Self-aligning bearings on the cutter reel are triple lip sealed with a guard to protect from dirt and residue.

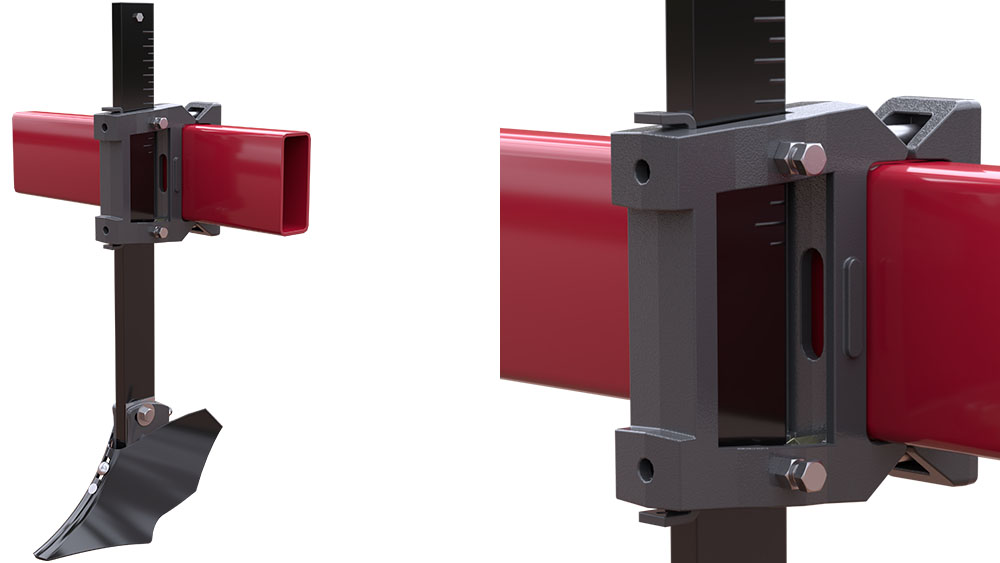

Shanks for optimal furrow shaping
The 12-row Wil-Rich 1500 Series has shanks with furrow shovels located in front of and behind the cutter reel for a clean and well-shaped furrow. The shanks can be adjusted to either align between the rows or one in between and one on the row to work existing beds with a sweep.

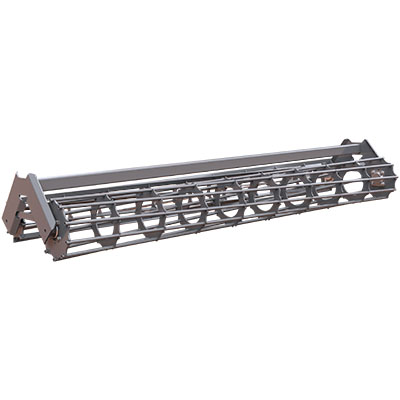

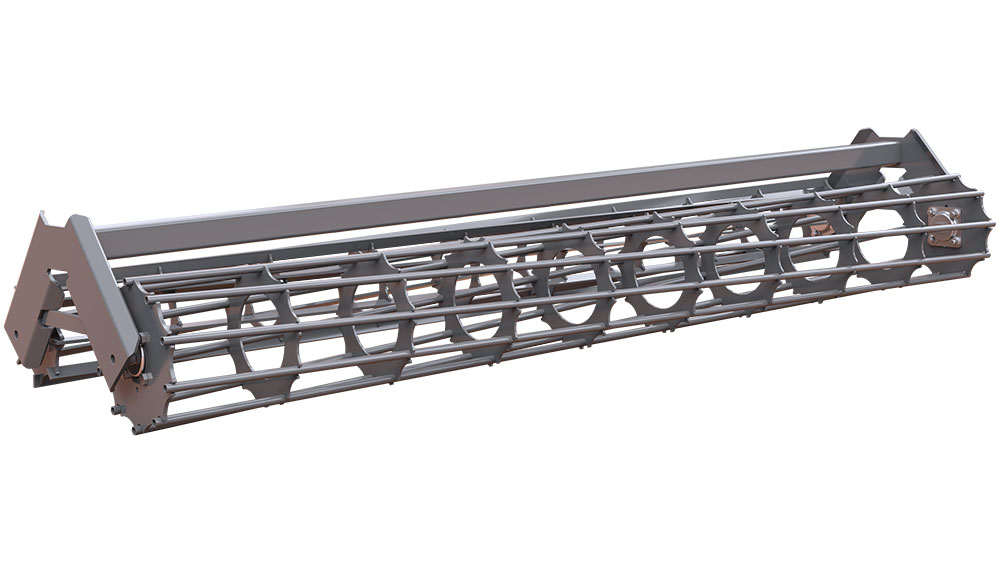

Double conditioning baskets for enhanced soil conditioning
The Wil-Rich 1500 Series features double conditioning baskets, with a flat bar basket in the front and a round bar basket in the rear. This setup reduces clod size, levels, and firms the soil, optimising the seedbed for even germination and emergence. The spring-mounted baskets ensure consistent field finishing, helping farmers achieve a well-prepared seedbed for better crop establishment and growth.

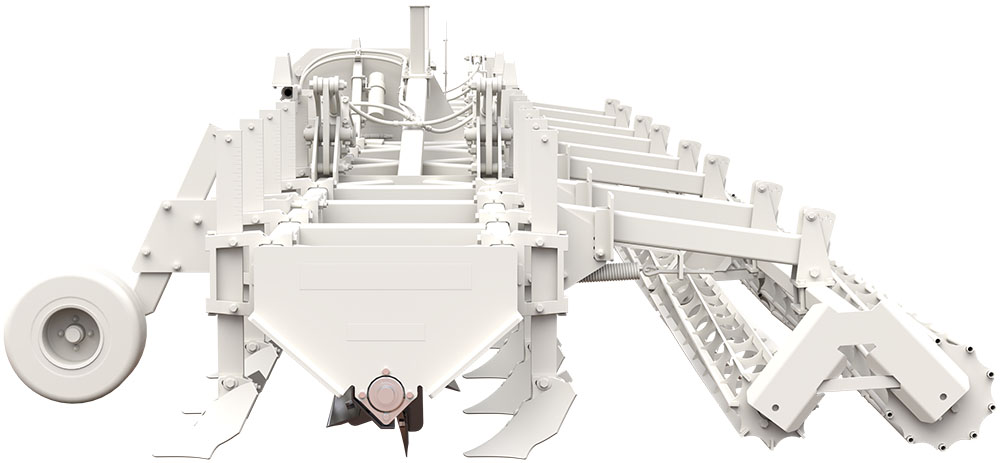

Concept

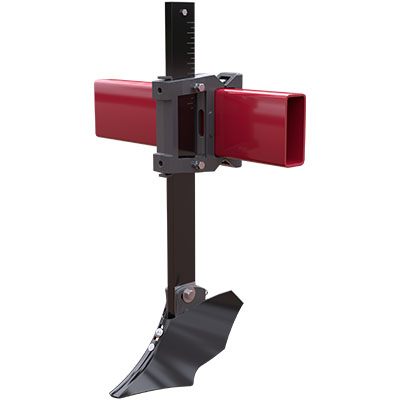

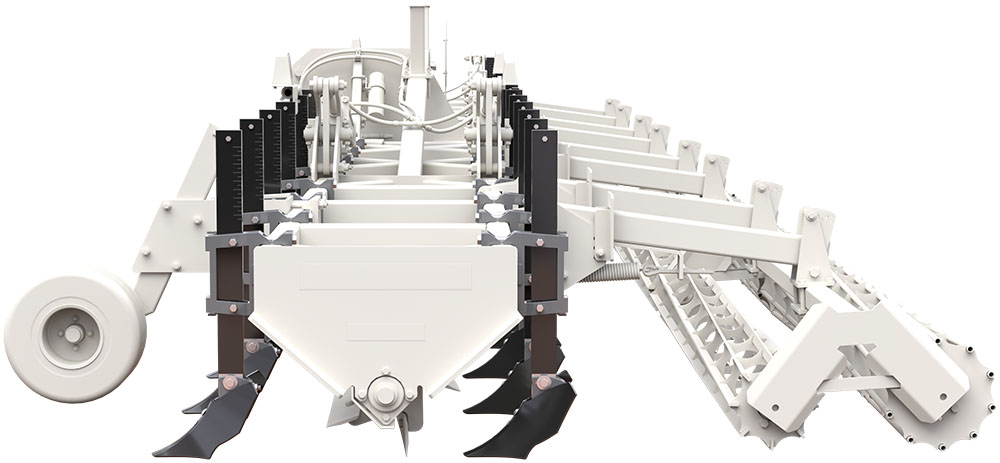

Zone 1 – Furrow creation
Two ranks of tines with furrow shovels for a clean and well-shaped furrow.
Tine

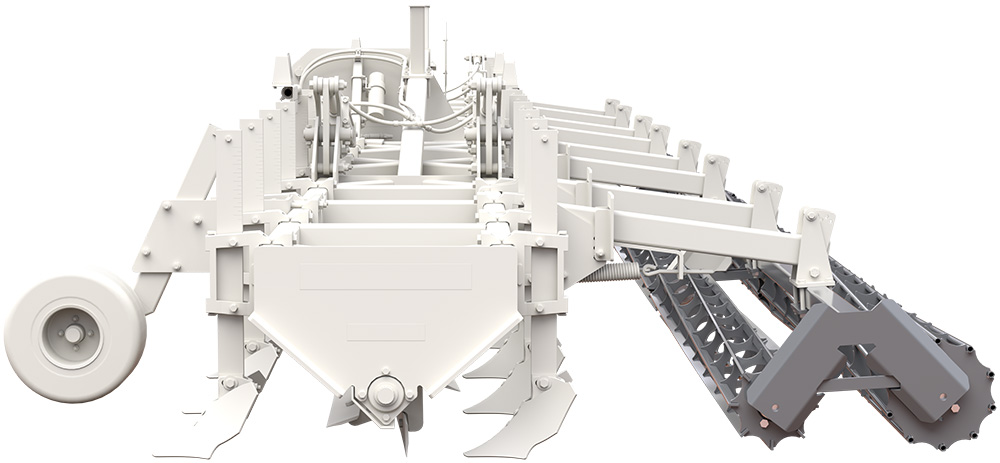

Zone 2 – Cutting
The cutting reel breaks up clods, helps incorporate chemicals, and levels the top of the seedbed.
Cutter reel
Zone 3 – Levelling
Finishing attachments create a level soil profile, setting the stage for an ideal seedbed in the spring. They also help distribute residue and break up clods.
Double conditioning baskets
Technical data
| SBF-1500-8R38 | SBF-1500-8R40 | SBF-1500-12R36 | |
| Number of rows | 8 | 8 | 12 |
| Row spacing, in | 38 | 40 | 36 |
| Number of fold cylinders | 2 | 2 | 4 |
| Working width, ft | 26.75 | 27.5 | 37 |
| Cutter reel/rear basket width, ft | 6.5 | 6.5 | 8.5 |
| Transport width, ft | 14.25 | 14.25 | 19 |
| Transport height, ft | 7 | 7 | 8.5 |
| Weight, lbs | 8,364 | 8,364 | 11,482 |
| Horsepower requirement | 200 | 200 | 300 |
| SBF-1500-12R38 | SBF-1500-12R40 | SBF-1500-16R30 | |
| Number of rows | 12 | 12 | 16 |
| Row spacing, in | 39 | 40 | 30 |
| Number of fold cylinders | 4 | 4 | 4 |
| Working width, ft | 39 | 41 | 41 |
| Cutter reel/rear basket width, ft | 9 | 10 | 10 |
| Transport width, ft | 20 | 21 | 21 |
| Transport height, ft | 9 | 10 | 10 |
| Weight, lbs | 11,745 | 11,882 | 12,448 |
| Horsepower requirement | 300 | 300 | 300 |
